MHC2/MHCA2/MHCM2 Series: High-Precision Angular Air Grippers Ultra-Compact Solution for High-Frequency Precision Automation The MHC2 Series represents a pinnacle in compact pneumatic gripping technology. Specifically designed for high-speed, high-repetition industrial applications, these angular grippers offer exceptional reliability in ø6 and ø7 bore sizes . Whether you need the ultra-lightweight profile of the MHCM2 or the auto-switch integration of the MHC2, this series provides the precision required for modern electronic assembly and micro-handling .

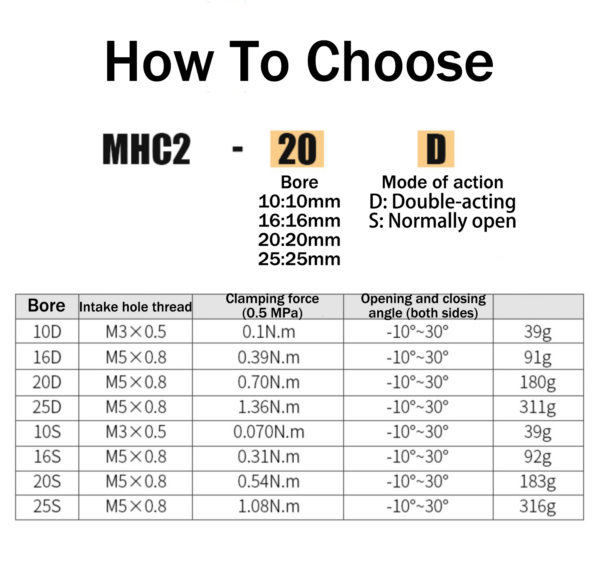

Key Series Variations Model Bore Size Special Feature Weight Dimensions MHC2-6 ø6 Auto switch attachable 22g 48 x 20 x 10 mm MHCA2-6 ø6 Short body profile 19g 41 x 20 x 10 mm MHCM2-7S ø7 Smallest and lightest in class 9.5g 23 x 15 x 10 mm

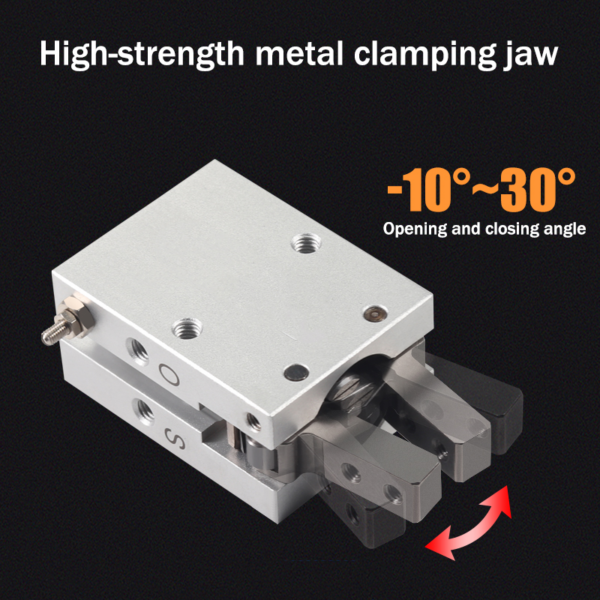

Technical Specifications The MHC2 series is engineered for durability, utilizing hard-anodized aluminum for the body and heat-treated stainless steel for the fingers . Specification MHC2-6 / MHCA2-6 MHCM2-7S Action Double / Single Acting Single Acting (Normally Open) Operating Pressure 0.15 to 0.6 MPa (Double) 0.4 to 0.6 MPa Opening/Closing Angle 30° to –10° 20° to –7° Repeatability ±0.02 mm ±0.02 mm Max. Frequency 180 c.p.m. 180 c.p.m. Temperature Range –10 to 60°C (No freezing) –10 to 60°C

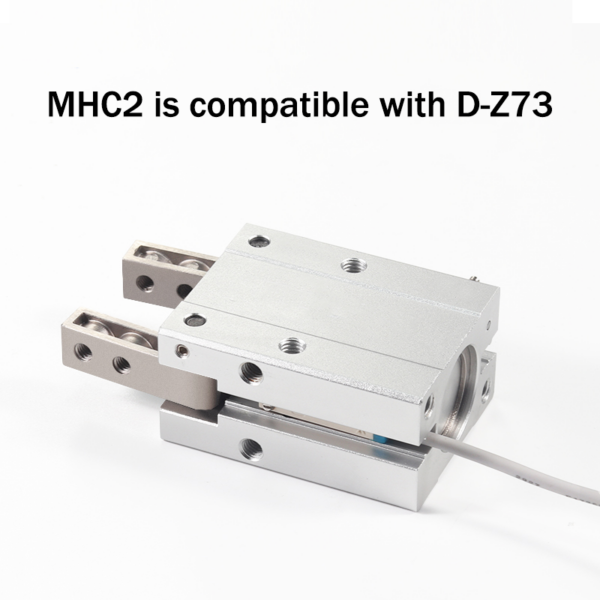

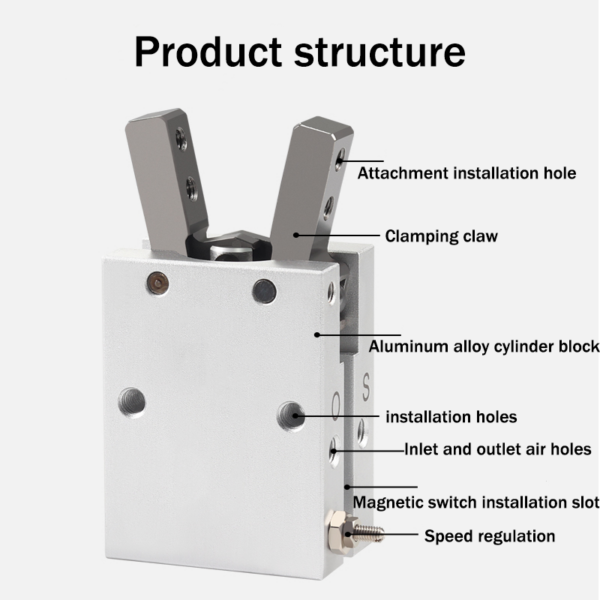

Advanced Features & Integration Integrated Sensing: The MHC2 and MHCA2 models feature built-in mounting grooves for solid-state auto switches (2-wire or 3-wire), allowing for precise position detection of “Open,” “Closed,” or “Workpiece Held” states . Flexible Piping Options: To accommodate tight robotic end-of-arm tooling, the series offers basic, side-ported, or axial-ported configurations (including M3, ø4 hose nipples, or One-touch fittings) . Rugged Construction: Components include high-carbon chromium bearing steel needle rollers and NBR seals for smooth operation and long service life . Mounting Versatility: Supports multiple mounting orientations including axial (body tapped) and lateral (through-hole or tapped) to fit any machine layout .

Professional Selection & Installation Guidelines

Gripping Force Selection For secure handling and safety, it is recommended to select a model that provides a gripping force 10 to 20 times the weight of the workpiece . This accounts for a safety margin (typically factor 4) to handle impacts during normal transportation .
Inertial Moment Management When using custom attachments, ensure the total inertial moment remains within the allowable range (e.g., 0.5 x 10⁻⁶ kg·m² for MHC2-6D without a speed controller) . Exceeding these limits requires a meter-in type speed controller to prevent damage from excessive finger speed .
Precision Mounting To maintain accuracy and prevent malfunction: M2.5 bolts for ø6 models should be tightened to a maximum torque of 0.49 N·m . M2 bolts for ø7 models should be tightened to a maximum torque of 0.15 N·m . Avoid scratching or denting the body during installation, as slight deformations can cause inaccuracy
