Description

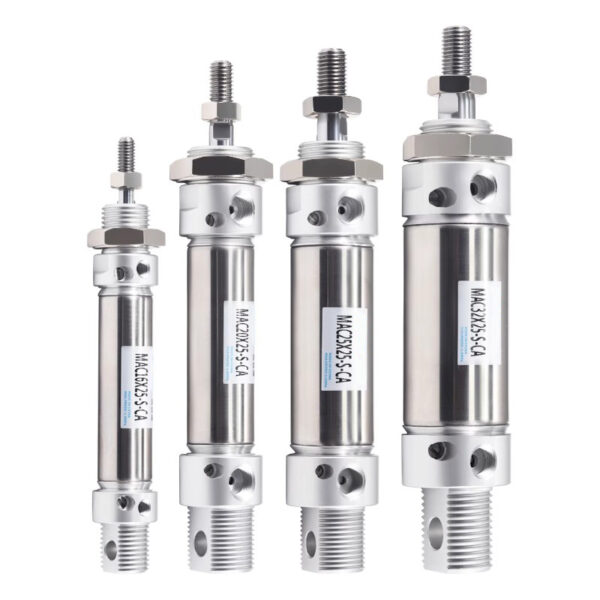

MAC Series: Stainless Steel Mini Cylinder

Double-Acting with Adjustable Cushion and Swivelling Tail

The MAC Series is a high-durability pneumatic roundline cylinder engineered to meet ISO 6432 standards. Designed for precision automation, it features a high-strength stainless steel tube for superior corrosion resistance and an integrated swivelling tail for flexible mounting in dynamic applications.

——————————————————————————–

Key Engineering Features

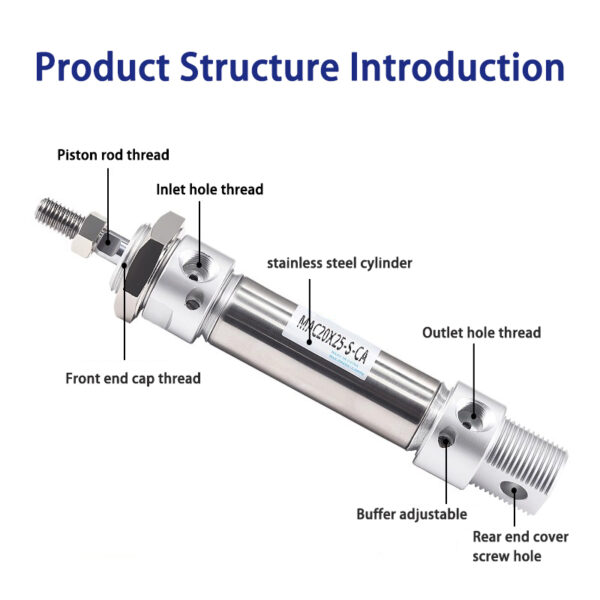

Robust Construction: The front and back covers are connected to the stainless steel tube using a riveted rolling packed structure, ensuring a reliable, leak-proof connection even under high-cycle operations.
Advanced Piston Design: Utilizes a heterogeneous two-way seal structure that allows for a compact size while providing an integrated grease reservation function for extended service life.
Precision Cushioning: Equipped with an adjustable air cushion to suppress vibration and noise at the stroke ends, reducing mechanical impact on the machine frame.
High Strength Body: The cylinder tube is made of high-precision stainless steel, offering high rigidity and excellent resistance to harsh industrial environments.

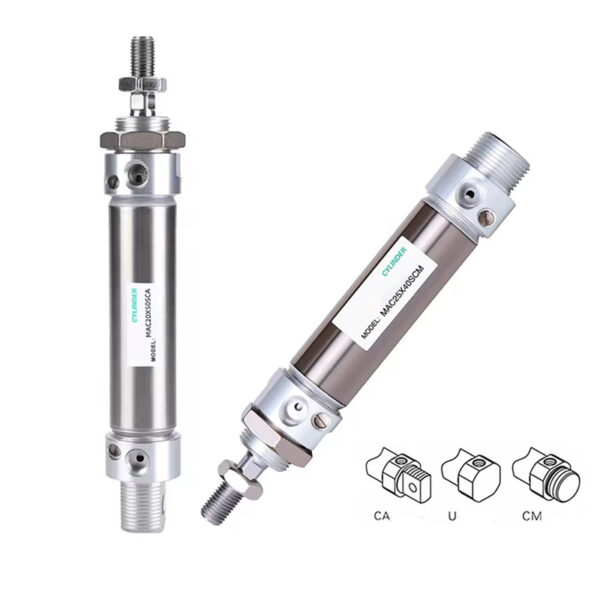

Installation Flexibility: The swivelling tail type (rear eye mounting) combined with multiple back-cover modes facilitates easy integration into various mechanical layouts.

——————————————————————————–

Technical Specifications

Feature	Specification Details	Source
Bore Sizes (mm)	16, 20, 25, 32, 40, 50, 63
Action Type	Double Acting
Fluid	Clean Air (filtered by 40μm element)
Operating Pressure	0.1 to 1.0 MPa (14.5 to 145 psi)
Proof Pressure	1.5 MPa (217 psi)
Ambient & Fluid Temp.	-20°C to 70°C
Operating Speed Range	30 to 500 mm/s
Cushion Type	Adjustable Cushion (Standard for MAC)
Stroke Tolerance	Stroke ≤ 150: +1.0/0 mm; Stroke > 150: +1.4/0 mm

——————————————————————————–

Standard Stroke and Porting

The MAC series supports a wide range of standard and custom strokes to suit diverse industrial requirements.

Bore Size (mm)	Standard Stroke Range (mm)	Max. Stroke	Port Size
16	25, 50, 75, 80, 100, 125, 150, 175, 200	500 mm	M5 x 0.8
20, 25, 32	25, 50, 75… up to 500 (standard intervals)	800 mm	G1/8″
40, 50, 63	25, 50, 75… up to 500 (standard intervals)	800 mm	G1/4″

——————————————————————————–

Construction Materials

Component	Material	Notes
Cylinder Tube	Stainless Steel	High-precision, corrosion-resistant
Piston Rod	Carbon Steel / Stainless Steel	Internal or external thread options
Front/Back Covers	Aluminum Alloy	Hard anodized or painted
Seals	NBR / TPU	Heterogeneous two-way structure
Cushion Seal	High-durability Synthetic Rubber	Adjustable via needle valve

——————————————————————————–

Ordering Guide and Integration

Bore Selection: Available from 16mm to 63mm to meet specific force requirements.
Sensing: Compatible with band-mount and rail-mount auto switches for precise position detection.
Mounting Brackets: Supports standard ISO 6432 accessories including Foot (LB), Front Flange (FA), and SDB brackets.
Application Environment: For high-speed applications, ensure the operating speed remains within the 30–500 mm/s range to maintain the effectiveness of the adjustable cushion
