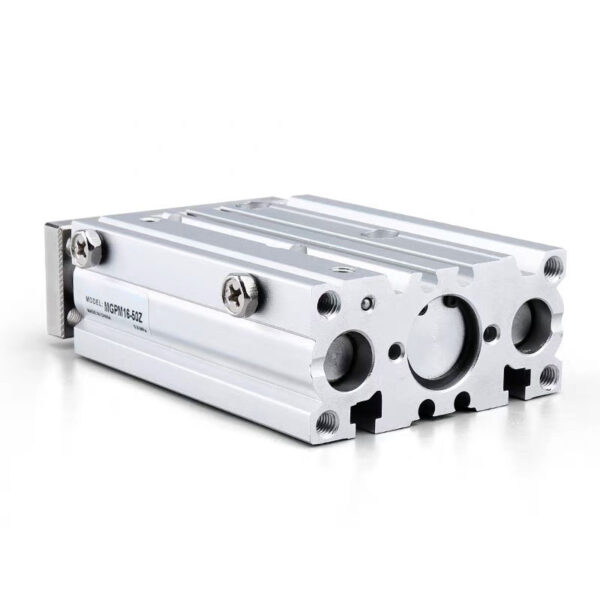

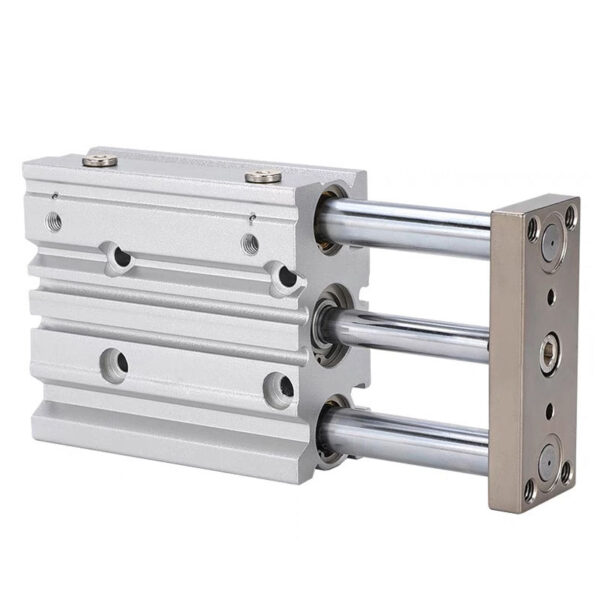

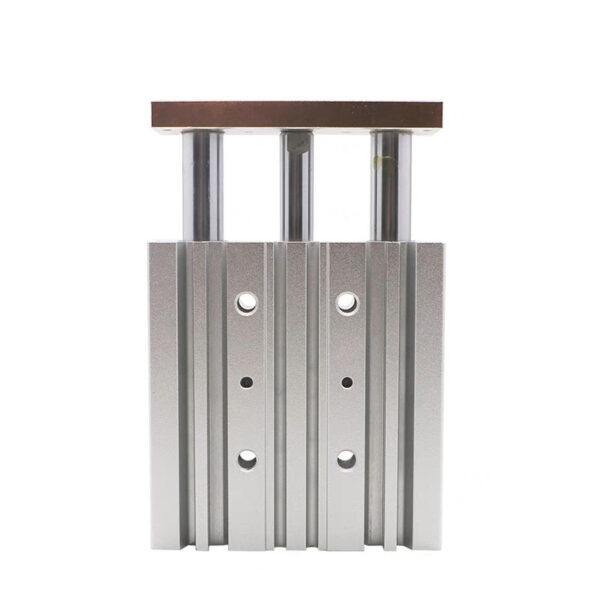

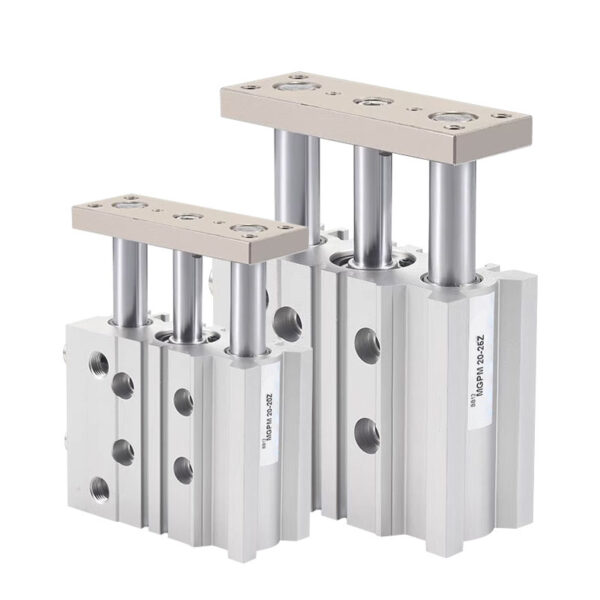

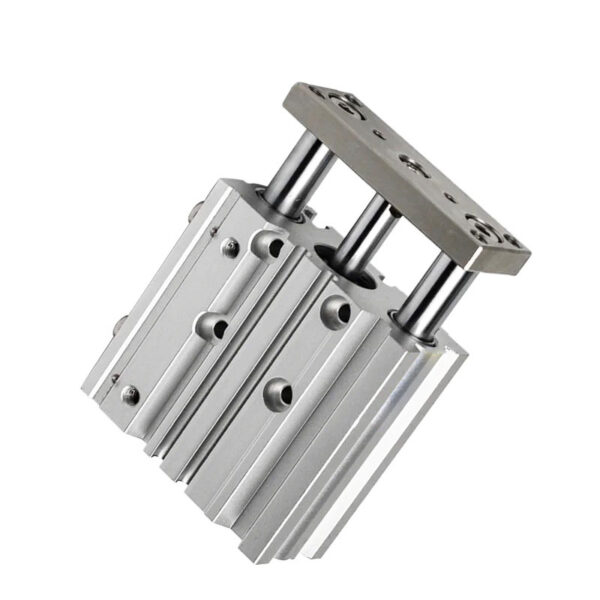

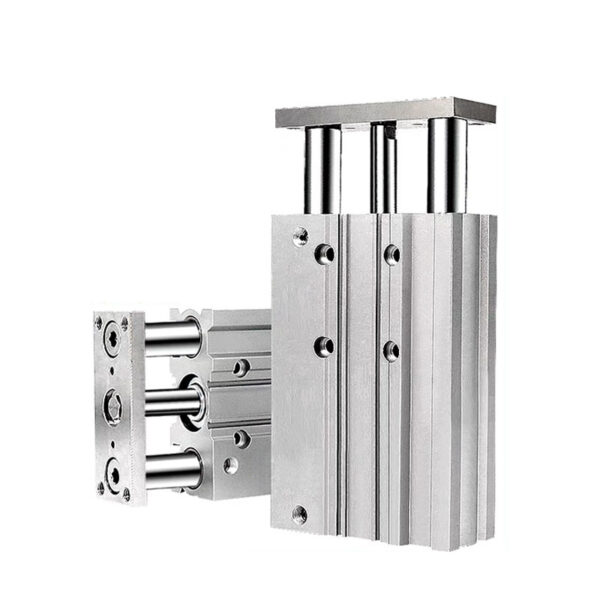

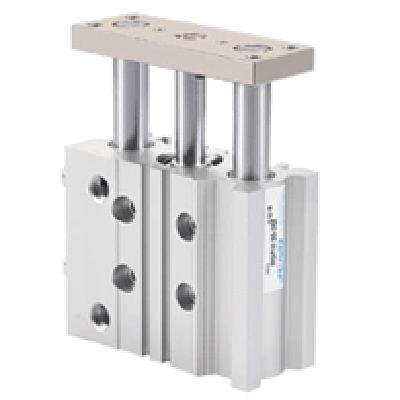

MGP Series: Compact Guide Cylinder (Slide Bearing Type)

High-Rigidity Solution for High Lateral Load Applications

The MGP Series (Slide Bearing Type) is a compact, integrated guide cylinder designed for automation environments requiring superior resistance to side loads and high non-rotating accuracy. By combining a standard cylinder with two guide rods, this series provides a high-rigidity platform for lifting, pushing, and stopper applications.

——————————————————————————–

Technical Specifications

Engineered to meet rigorous industrial standards, the slide bearing variant (MGPM) is specifically optimized to withstand higher side loads compared to ball bushing types.

Feature	Specification Details	Source
Bore Sizes (mm)	12, 16, 20, 25, 32, 40, 50, 63, 80, 100
Action	Double Acting
Fluid	Compressed Air
Proof Pressure	1.5 MPa (217 psi)
Max. Operating Pressure	1.0 MPa (145 psi)
Min. Operating Pressure	0.12 MPa (ø12, ø16); 0.1 MPa (ø20–ø100)
Ambient & Fluid Temp.	-10°C to 60°C (14°F to 140°F) with no freezing
Piston Speed (ø12–63)	50 to 500 mm/s (2 to 19 in/s)
Piston Speed (ø80, 100)	50 to 400 mm/s (2 to 15 in/s)
Cushion	Rubber bumper at both ends (Optional: Air cushion)
Lubrication	Non-lube (Factory pre-lubricated)
Stroke Tolerance	+1.5 / 0 mm

——————————————————————————–

Performance Data

1. Non-Rotating Accuracy (θ)

The slide bearing (MGPM) ensures precise alignment without external guides. Values represent the accuracy without a load.

Bore Size (mm)	Accuracy (θ)	Source
ø12, ø16	±0.08°
ø20, ø25	±0.07°
ø32, ø40	±0.06°
ø50, ø63	±0.05°
ø80, ø100	±0.04°

2. Theoretical Output (OUT/Extension Force)

Data based on 0.5 MPa (72.5 psi) operating pressure.

Bore Size (mm)	Output Force (N)	Output Force (lbf)
ø12	57 N	12.8 lbf
ø20	157 N	35.3 lbf
ø32	402 N	90.4 lbf
ø50	982 N	220.7 lbf
ø80	2514 N	565.1 lbf
ø100	3927 N	882.8 lbf

——————————————————————————–

Structural & Operational Features

Integrated Mounting & Piping: Supports four mounting styles (Top, Side, T-slot Side, and Bottom) and dual-direction piping (Top and Side ports) to maximize installation flexibility.
Slide Bearing Design: Uses lead bronze casting bushings and carbon steel guide rods to provide excellent stability under significant eccentric or side loads.
Compact Footprint: Ideal for space-constrained robotic arms and material handling systems.
Sensor Ready: Features integrated slots for auto switches on two sides for end-of-stroke detection.
Knock Pin Holes: Provided on each mounting surface to facilitate easy and repeatable positioning.

——————————————————————————–

Construction Materials

Component	Material	Treatment/Notes
Cylinder Body	Aluminum Alloy	Hard Anodized
Guide Rod	Carbon Steel	Hard Chrome Plated
Plate	Carbon Steel	Nickel Plated
Piston Rod	Stainless Steel / Carbon Steel	Varies by bore size
Bushings	Lead Bronze Casting	Standard for MGPM
Seals	NBR (Nitrile Rubber)	Standard Industrial Grade

——————————————————————————–

Ordering & Maintenance Notes

Intermediate Strokes: Available in 1mm and 5mm increments via spacers or specialized body types (-XB10).
Stopper Applications: When used as a stopper, only slide bearing types (MGPM) should be selected; strokes should be limited to 30mm or 50mm depending on bore size.
Filtration: Clean air filtered by a 40μm element is required to ensure long-term seal integrity
