Description

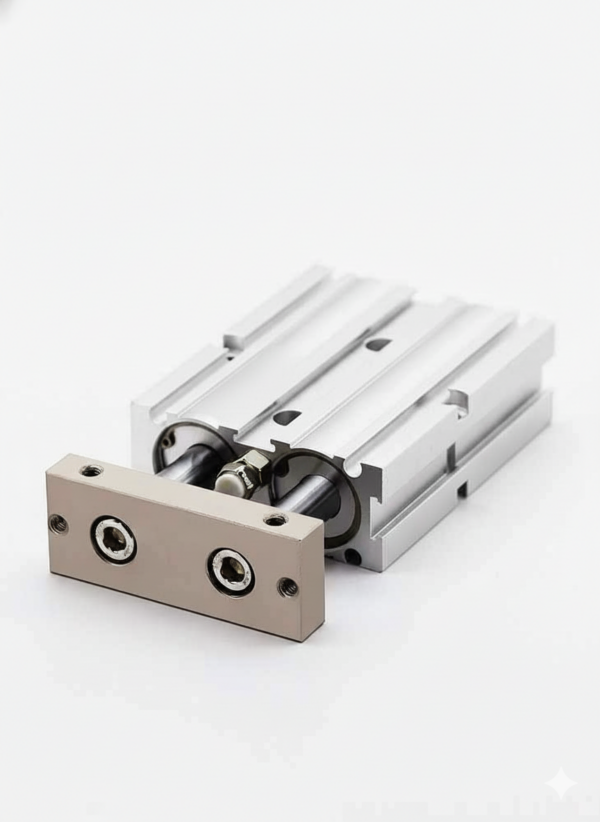

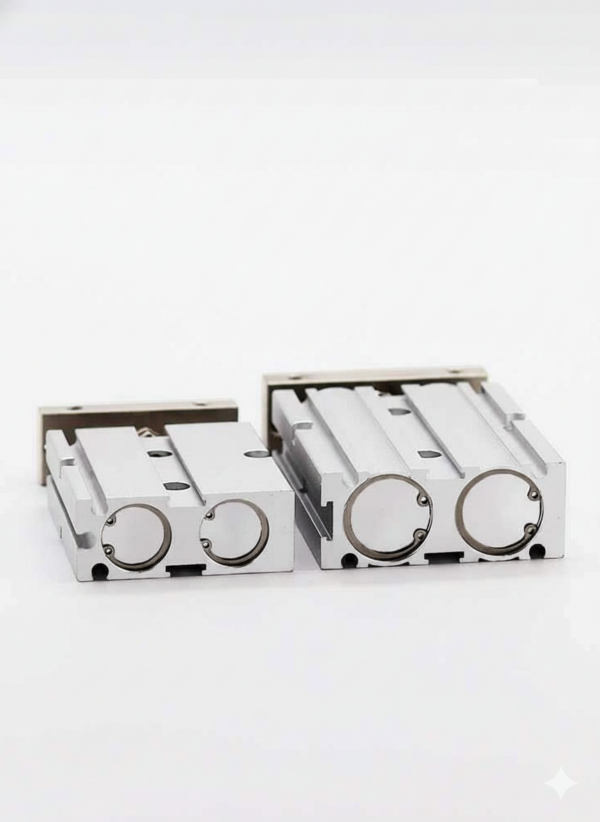

Hey there! Over my many years spent outfitting automated assembly lines and wrenching on heavy-duty factory equipment, I’ve learned exactly what it takes to keep a pneumatic system running when the physical forces get tough. When my B2B wholesale clients or retail shop managers ask me for an actuator that can handle serious off-center forces without snapping, I always point them straight to the Cylinder TDA. It is an incredibly rugged dual rod pneumatic cylinder that completely transforms how you handle lateral loads on the shop floor, making it an essential addition to any modern automation procurement list.

Why the Cylinder TDA Dominates the Shop Floor

In my hands-on experience, the biggest headache floor techs face is equipment fatigue caused by torsion and bending. Standard single-rod units often buckle under these shifting forces, but the Cylinder TDA tackles this head-on. Its specialized dual-rod design provides incredibly high resistance to bending and torsion, ensuring exceptional steering performance and extending the overall lifespan of your machine. It can withstand significant lateral loads that would normally destroy a lesser actuator.

Space-Saving Embedded Installation

What I really love about this unit is its brilliant, space-saving design. The Cylinder TDA utilizes an embedded body installation fixed form. Because it mounts so seamlessly, it does not require any bulky external brackets or extra accessories. Furthermore, the fixing plate features mounting holes on three sides, making multi-position loading incredibly convenient for your installation teams. Designed with a simple assembly method for easy disassembly and maintenance, it greatly reduces downtime. Whether you are integrating it into a highly compact machine layout where you might typically use a micro cylinder, or building out larger profile cylinder networks, the compact nature of the TDA makes setup a total breeze.

Smart Adjustments and Sensor Integration

When you are out on the floor turning wrenches, you deeply appreciate equipment that is easy to tune. The body of the Cylinder TDA features a front anti-collision pad that acts as a bumper to ease impact, while simultaneously allowing you to precisely adjust the cylinder stroke. Additionally, mounting grooves are reserved all around the body, making it exceptionally simple to flush-mount and adjust your magnetic switches. It is the perfect complement to robust twin rod cylinder applications or rugged stainless steel round body cylinder setups.

Core Product Specifications

To keep your engineering catalogs perfectly accurate and help your B2B buyers spec their systems flawlessly, here are the exact technical specifications for this unit:

Specification Element	Technical Detail
Bore Sizes (mm)	16, 20, 25, 32, 40
Motion Pattern	Double Action or Single Action
Port Size	M5×0.8 (ø16), G1/8″ (ø20-32), G1/4″ (ø40)
Operating Speed Range	30 ~ 800 mm/s
Operating Pressure Range	0.1 ~ 0.9 MPa
Standard Stroke (mm)	25 ~ 300 (Multiple increments)

Advantage Summary

The Cylinder TDA delivers exceptional steering performance and superior resistance to bending and torsion via its rugged dual-rod design. Featuring a space-saving embedded body installation and versatile three-sided mounting holes, it effortlessly handles lateral loads. With a front anti-collision pad for precise stroke adjustment, this actuator ensures highly reliable pneumatic automation.
