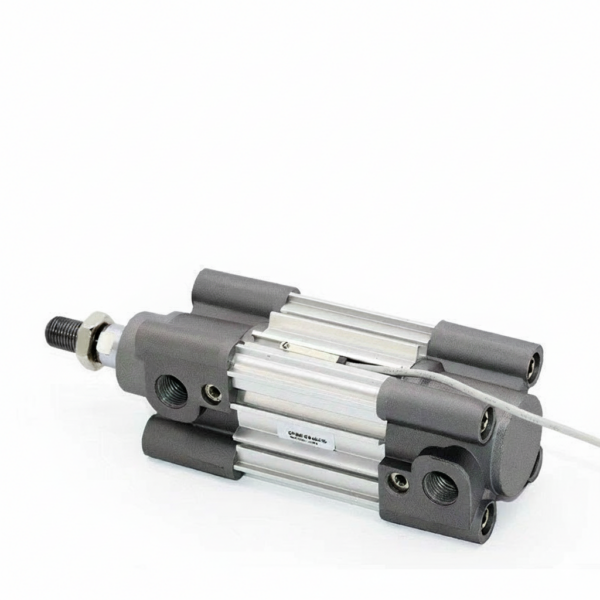

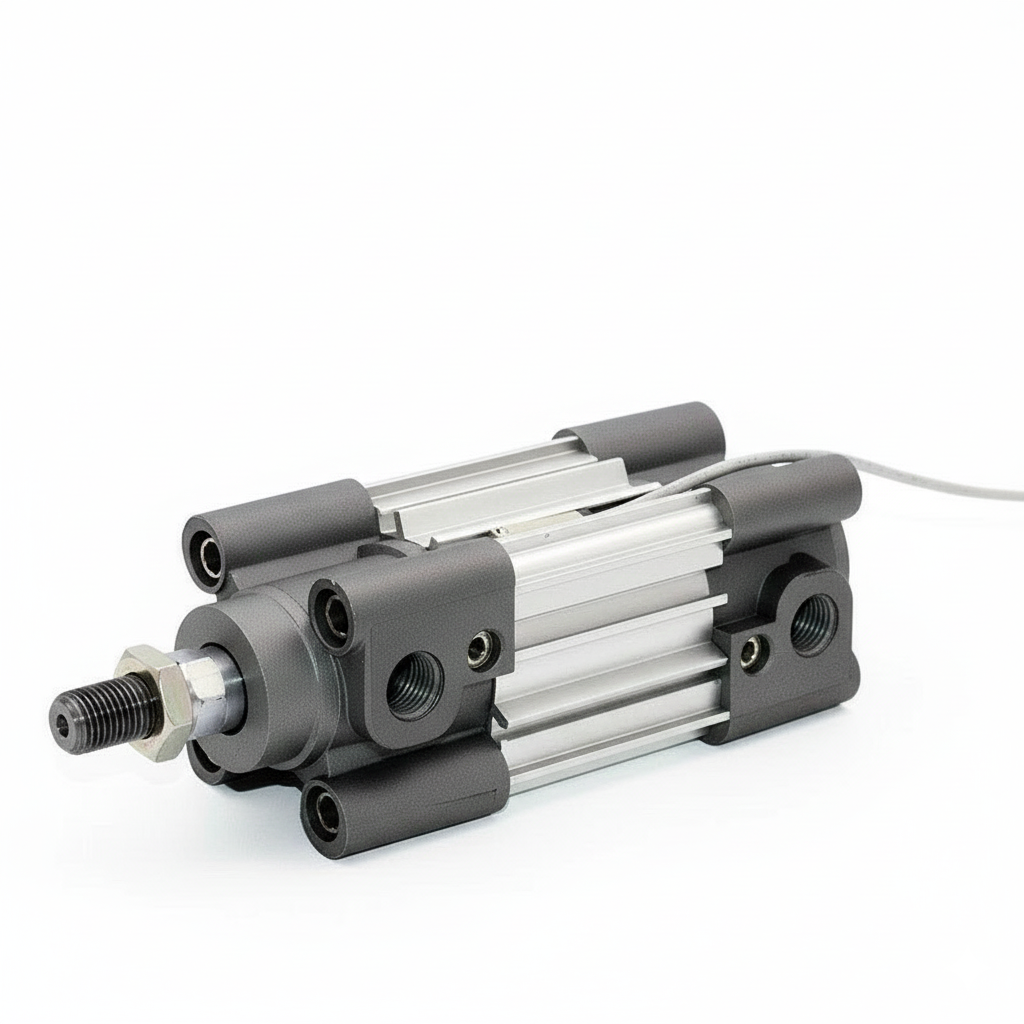

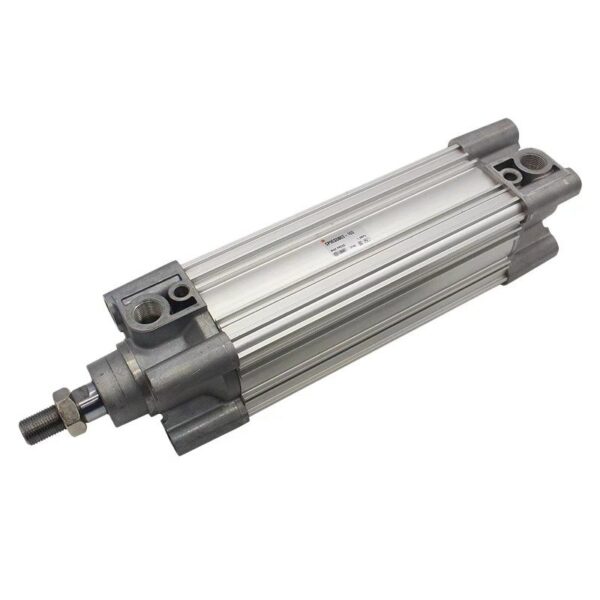

Profile Cylinder CP96 Providing high-precision manufacturing solutions for the global industry
Description

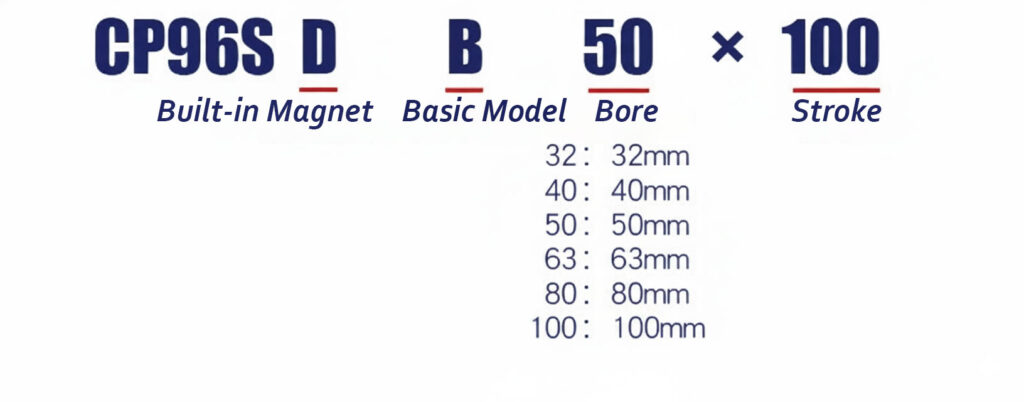

Product Selection Parameters
| Bore | Inlet Port Thread | Piston Rod Thread | Mounting Thread | Thrust (0.5Mpa) |
|---|---|---|---|---|
| 32 | 1/8 (1 point) | M10 × 1.25 | M6 × 1.0 | 28 kg |
| 40 | 1/4 (2 points) | M12 × 1.25 | M6 × 1.0 | 50 kg |
| 50 | 1/4 (2 points) | M16 × 1.5 | M8 × 1.25 | 78 kg |
| 63 | 3/8 (3 points) | M16 × 1.5 | M8 × 1.25 | 124 kg |
| 80 | 3/8 (3 points) | M20 × 1.5 | M10 × 1.5 | 200 kg |
| 100 | 1/2 (4 points) | M20 × 1.5 | M10 × 1.5 | 314 kg |
Y-fitting
I-fitting
Floating joint
heim join
clevis bracket
flange bracket
leg mount
leg mount
double eye bracket
single eye bracket
This thing’s got a built-in magnetic ring that works with a magnetic switch to send signals. It senses movement, you know? The imported dry spring has an operating range of 5-14mm, with a 2mm magnetic hysteresis. Oh, and you gotta buy the switch separately
