Description

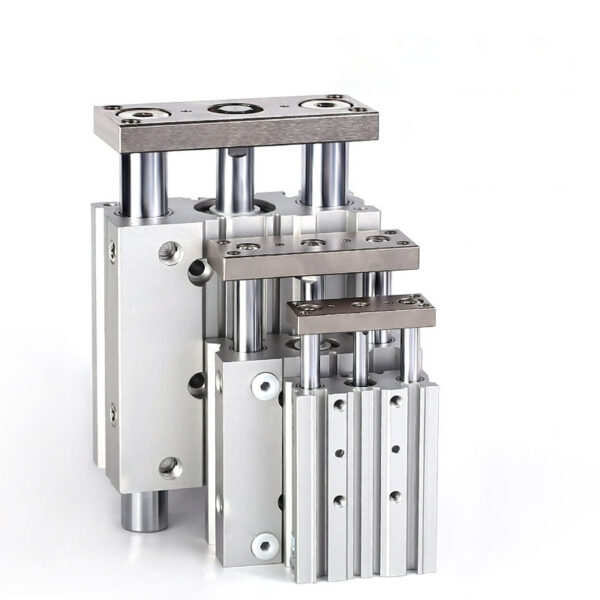

Hey folks! Over my many years spent designing pneumatic systems and wrenching on complex automated assembly lines, I’ve learned that finding an actuator that perfectly balances structural rigidity with high-speed precision is incredibly rare. When my B2B wholesale buyers and factory techs need a bulletproof, heavy-duty guided solution that completely prevents unwanted rotation, I always point them straight to the Cylinder TCM. This dual-rod, guided pneumatic cylinder brings incredible load-bearing capabilities directly to your shop floor, making it an absolute must-have for any serious automation catalog. This JIS-standard compliant actuator ensures you are getting top-tier engineering straight out of the box.

Why the Cylinder TCM is My Ultimate Automation Workhorse

In my hands-on experience, the biggest challenge floor engineers face is lateral stress tearing apart standard actuators. The Cylinder TCM tackles this head-on by utilizing two heavy-duty guides made of special bearing steel. Because the drive unit and guide unit are smartly integrated into the same unified barrel, you don’t need any bulky external accessories. This minimal space requirement is an absolute lifesaver when you are trying to squeeze robust performance into a tight machine layout, especially when compared to trying to rig up a customized compact profile cylinder.

Bearing Options for Extreme Precision and Load

What makes this unit truly fly off retail shelves is how perfectly you can tune it to your specific application. You have two distinct internal bearing options. When I need to handle heavy radial loads or require doubled horizontal impact resistance with significantly stronger torsion rigidity, I always spec the bronze sliding bearing. On the other hand, if I’m setting up a smooth elevation action or a low-friction process requiring extremely high precision, the steel ball linear bearing is flawless. It delivers the kind of exacting accuracy you’d normally only expect from a highly specialized precision micro cylinder.

Space-Saving Unified Barrel and Easy Mounting

Installation out on the line is a total breeze. The main body features a highly versatile multi-mount design with optional air intake positions, allowing you to route your pneumatic lines cleanly. The bottom back side and the fixating plate are equipped with exact orientation orifices, guaranteeing pinpoint installation precision every single time. Plus, it comes standard with four mounting slots for your sensor switches. It seamlessly complements advanced twin rod cylinder setups or delicate panel mount pin cylinder configurations on the factory floor without skipping a beat.

Core Product Specifications

To keep your procurement sheets perfectly accurate and help your engineering buyers make the right decisions, here is the exact technical breakdown:

Specification Element	Technical Detail
Bore Sizes (mm)	16, 20, 25, 32, 40
Motion Pattern	Double Action or Single Action
Port Size	M5×0.8 (ø16), G1/8″ (ø20-32), G1/4″ (ø40)
Operating Speed Range	30 ~ 800 mm/s
Operating Pressure Range	0.1 ~ 0.9 MPa
Standard Stroke (mm)	25 ~ 300 (Multiple increments)

Advantage Summary

The Cylinder TCM delivers unmatched anti-rotation precision via its JIS-compliant, dual-rod unified barrel design. Offering steel ball bearings for low-friction elevation and bronze sliding bearings for heavy radial loads, it perfectly adapts to extreme automation environments. With versatile multi-mounting and orientation orifices, it guarantees high-torque, space-saving reliability for demanding B2B applications.
