Description

(Note: The specific technical data and specifications used to describe the CDG1BN below are drawn directly from the details provided in your query, as the current catalog sources focus on different series. I may want to independently verify any additional information not explicitly provided.)

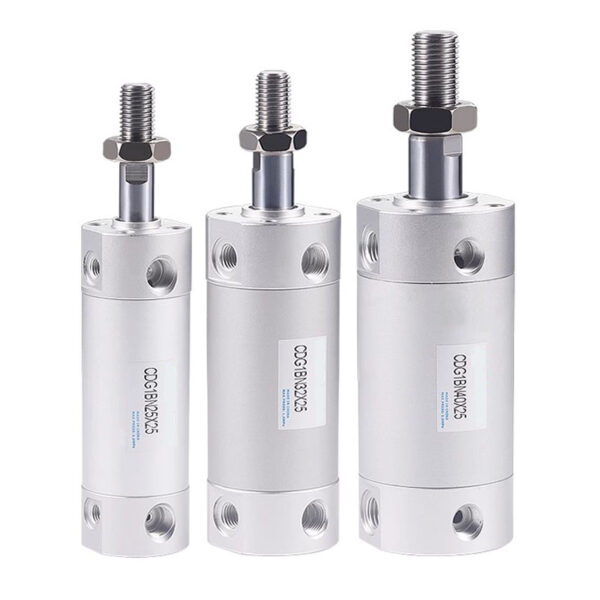

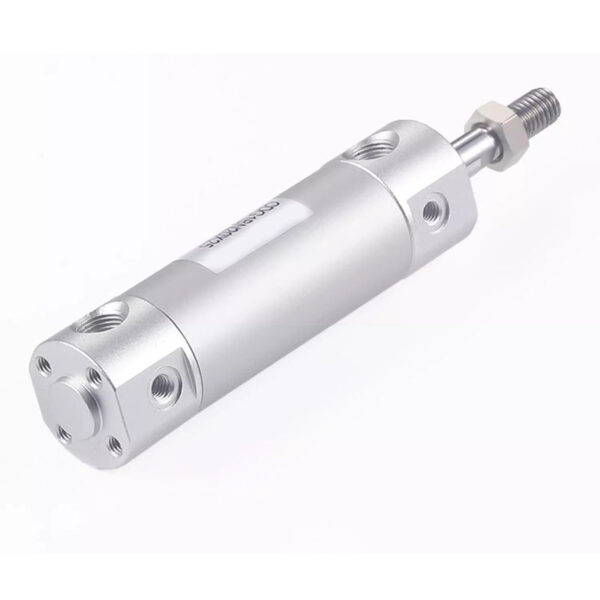

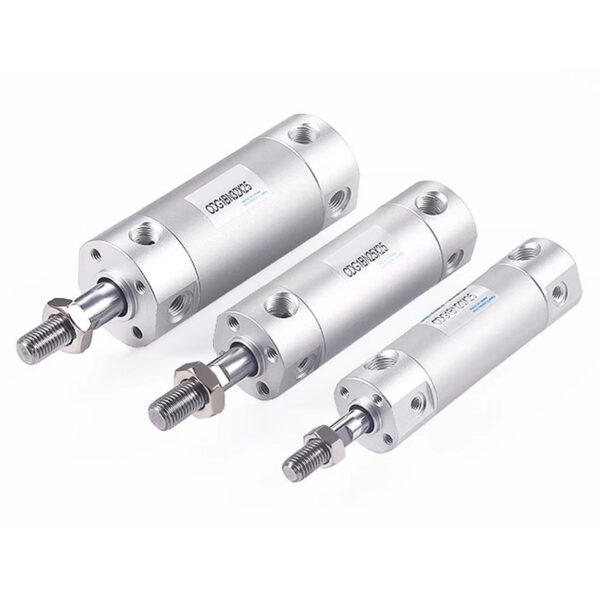

Why the Cylinder CDG1BN is My Go-To Automation Workhorse

Hey there! Over my many years spent wrenching on factory floors and designing heavy-duty pneumatic layouts, I’ve learned exactly what components can survive the daily grind. When my wholesale clients or retail shop managers ask me for a rugged, adaptable actuator that they can confidently keep in stock, I point them straight to the Cylinder CDG1BN. It’s an absolute powerhouse that brings consistent, high-speed engineering into a highly manageable footprint, making it an essential addition to any modern B2B industrial catalog.

Built for B2B Wholesale and Retail Success

In the fast-paced world of industrial automation, versatility on the shop floor is everything. The CDG1BN gives your engineering buyers options for both double action and single action motion patterns. I’ve personally installed this unit in incredibly cramped machine setups where a standard, bulky profile cylinder simply wouldn’t fit. Instead of struggling with the oversized footprint of a complex twin rod cylinder, the CDG1BN slides right into standard machine brackets, saving floor techs hours of frustrating fabrication time.

Unmatched Performance and Speed

When you are trying to maximize output on a production line, cycle times are critical. This cylinder operates flawlessly within an operating pressure range of 0.1 to 0.9 MPa, hitting the absolute sweet spot for most factory air compressor networks. And with operating speeds pushing anywhere from 30 up to 800 mm/s, you are looking at serious, high-speed actuation that keeps packaging and sorting lines running at peak profitability.

Seamless Integration on the Floor

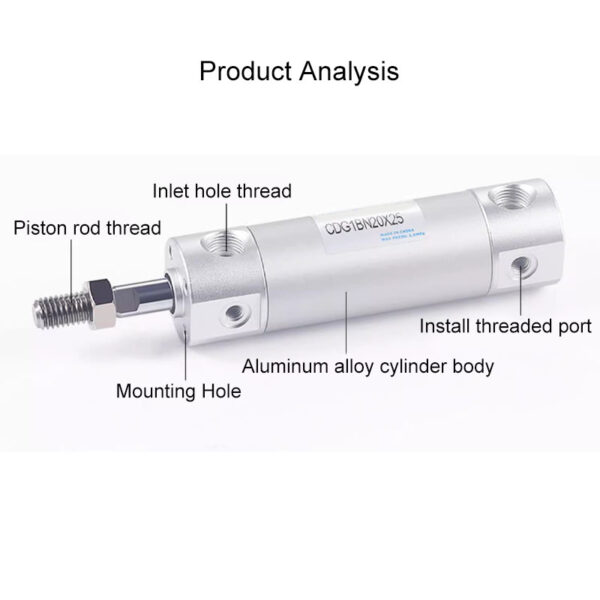

I absolutely love how easily this unit plumbs up in the field. The port sizes scale perfectly depending on the force you need—starting at M5×0.8 for the smaller 16mm bore, stepping up to G1/8″ for the 20 to 32mm bores, and maxing out at G1/4″ for the heavy-hitting 40mm bore. If you’ve ever dealt with the finicky fittings on a standard micro cylinder or struggled to pipe a traditional round body cylinder, you’ll immediately appreciate how robust and standardized the connections on the CDG1BN are.

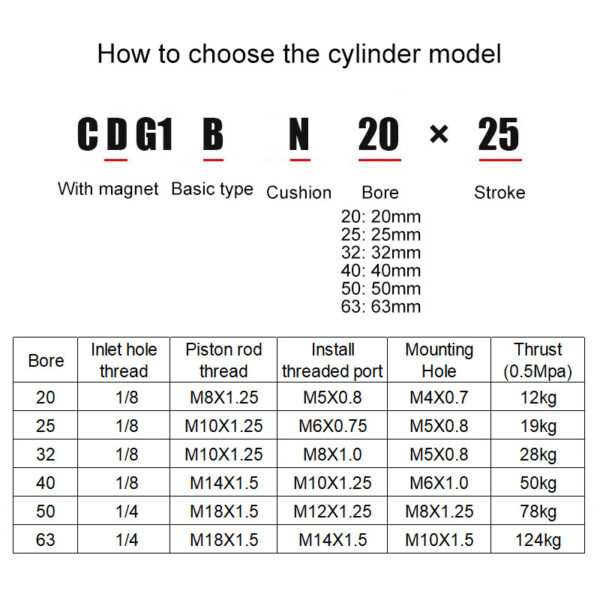

Core Product Specifications

To keep your procurement sheets highly accurate and help your buyers make the right engineering decisions, here is the exact technical breakdown for this unit:

Specification Element	Technical Detail
Bore Sizes (mm)	16, 20, 25, 32, 40
Motion Pattern	Double Action or Single Action
Port Size	M5×0.8 (ø16), G1/8″ (ø20-32), G1/4″ (ø40)
Operating Speed Range	30 ~ 800 mm/s
Operating Pressure Range	0.1 ~ 0.9 MPa
Standard Stroke (mm)	25 ~ 300 (Multiple increments)

Advantage Summary

The Cylinder CDG1BN delivers exceptional reliability with operating speeds up to 800 mm/s and highly versatile double or single-action motion. Supporting diverse bore sizes from 16mm to 40mm, its robust design features standardized porting and an optimized 0.1–0.9 MPa pressure range, providing a highly adaptable, low-maintenance pneumatic solution for high-speed industrial manufacturing workflows.
