Description

Hey there! Over my many years spent outfitting automated assembly lines and ordering critical components for wholesale distributors, I’ve learned that finding a truly reliable mini actuator can be a daunting task. You need something that resists wear, fits into tight spaces, and operates flawlessly cycle after cycle. Whenever my B2B clients ask for a rugged, space-saving solution, my immediate and unwavering recommendation is the Cylinder (Stainless Steel) MA. It is an absolute workhorse that brings heavy-duty engineering into a miniaturized package, making it an essential addition to any shop floor or retail catalog.

Why the MA Series Dominates the Shop Floor

My Hands-On Experience with Stainless Steel Durability

When you are out on the floor, equipment failure simply isn’t an option. The barrel of the MA series is crafted from high-precision stainless steel, giving it incredible structural strength and top-tier corrosion resistance. As a high-quality round body stainless steel cylinder, it easily shrugs off the harsh, humid environments that would pit or rust standard aluminum tubes. To make it even tougher, the front and back covers are bound to the stainless steel block using a specialized riveted rolling packed structure. This guarantees a rock-solid, reliable connection that will never shake loose, even under heavy, high-speed operation.

Superior Sealing and Easy Integration

Another major reason I constantly spec this unit for my machine builds is its internal sealing technology. The piston adopts a heterogeneous two-way seal structure. In practical terms, this compact design acts as an internal grease reservation system, significantly extending the time between maintenance intervals. Nobody wants to be constantly tearing down machines to lubricate a compact micro cylinder; this design actively prevents that headache. It also comes standard with a fixed front cover bumper, which brilliantly absorbs direction-change impacts to protect your tooling.

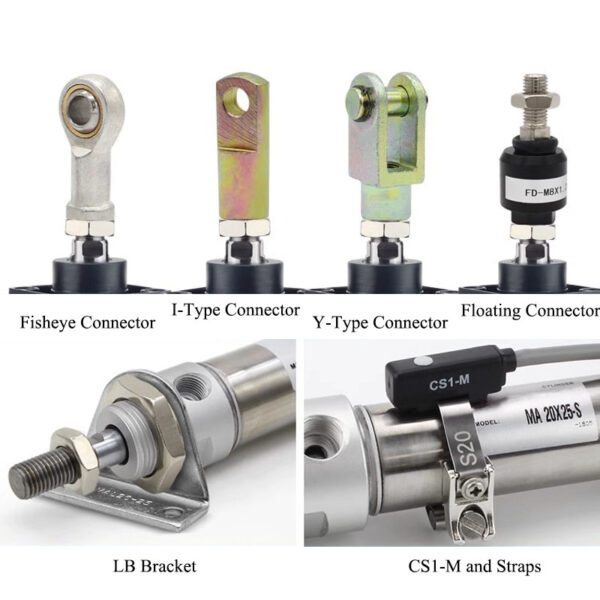

For installation, this series is a total dream. It offers multiple back cover modes—including pivot type, flat-end type, and round-end type—making your mounting process highly convenient. Built with integrated magnets as a standard feature, it easily supports sensor switches for precise position tracking. When setting up complex miniature pneumatic configurations or integrating it alongside other standardized industrial cylinders, the MA Series adapts effortlessly. Just remember to use a 40μm filter element for your air supply and apply anti-freezing measures if your facility drops below optimal temperatures.

Core Product Specifications

To ensure your wholesale catalog is perfectly accurate and your procurement engineers know exactly what they are getting, here are the core technical specifications:

Specification Element	Technical Detail
Bore Sizes (mm)	16, 20, 25, 32, 40
Motion Pattern	Double Action or Single Action
Port Size	M5×0.8 (ø16), G1/8″ (ø20-32), G1/4″ (ø40)
Operating Speed Range	30 ~ 800 mm/s
Operating Pressure Range	0.1 ~ 0.9 MPa
Standard Stroke (mm)	25 ~ 300 (Multiple increments)

Advantage Summary

The MA Series Stainless Steel Cylinder combines high-strength corrosion resistance with a highly reliable riveted rolling structure. Featuring an advanced two-way seal for extended grease reservation and multiple back cover mounting modes, this compact cylinder delivers exceptional durability and consistent, low-maintenance pneumatic performance for heavy-duty industrial automation.
