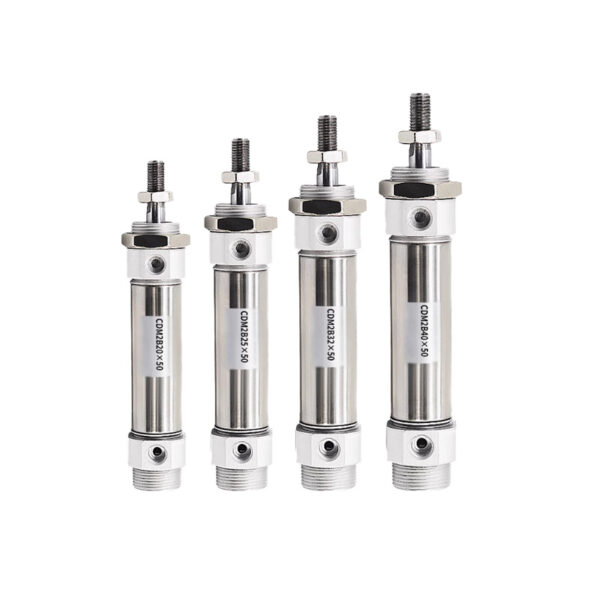

Hey there! Over the years I’ve spent designing automated assembly lines and ordering parts for major wholesale distributors, I’ve learned that finding the perfect compact actuator can be a huge headache. You want something that hits hard, lasts forever, and doesn’t take up half your machine’s footprint. When space is at an absolute premium but you still need rock-solid, repeatable performance, I always recommend the Cylinder (Metric) CDM2B to my B2B clients. This metric mini cylinder is an absolute game-changer for cramped machine layouts. It offers incredible mounting versatility without sacrificing the rugged, daily-grind reliability that your retail customers and factory techs demand.

Why the CDM2B Metric Mini Cylinder is a Shop Floor Essential

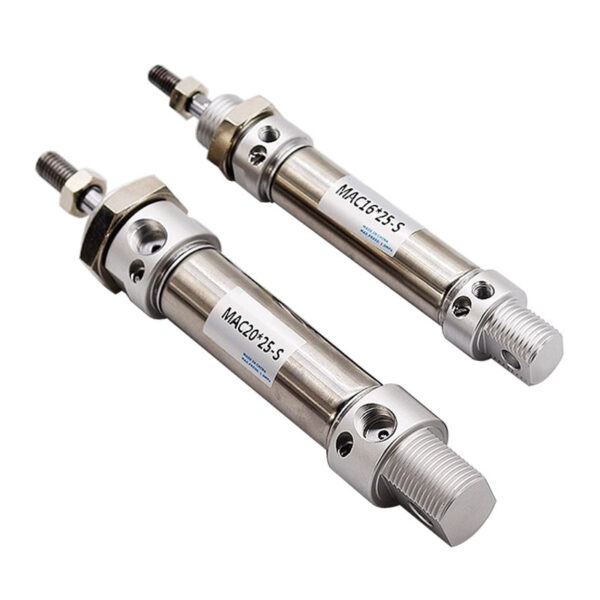

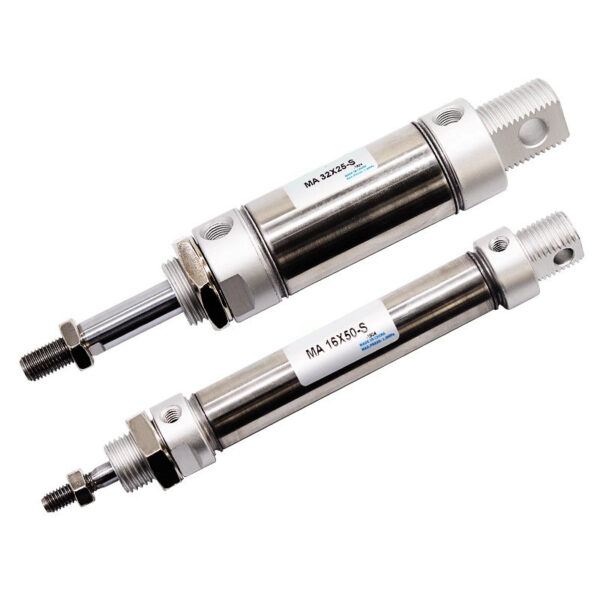

In my hands-on experience, the biggest challenge floor techs face is shoehorning standard pneumatic components into tight, restrictive machine frames. That’s exactly where the CDM2B shines. It features a highly durable stainless steel construction that stands up to demanding industrial environments, functioning beautifully as a highly reliable round body stainless steel cylinder.

But what really makes it fly off retail shelves is its space-saving engineering. You can configure it with a female rod end, which shaves off up to 29 mm from the overall length. Need it even shorter? Opt for the boss-cut type to save an additional 16 mm. When you’re trying to squeeze a lightweight micro cylinder into a highly congested robotic cell, those millimeters make all the difference in the world. When you compare this to trying to wedge a bulky, traditional profile cylinder into the exact same spatial envelope, the CDM2B makes installation a total breeze.

Superior Sealing and Smart Sensor Integration

Another huge selling point I always highlight to procurement teams is the lifespan of this unit. The advanced piston seal and rod seal design delivers excellent longevity, drastically reducing maintenance downtime for your end-users. Plus, it comes standard with rubber bumpers to absorb end-of-stroke impact, keeping cycle times smooth.

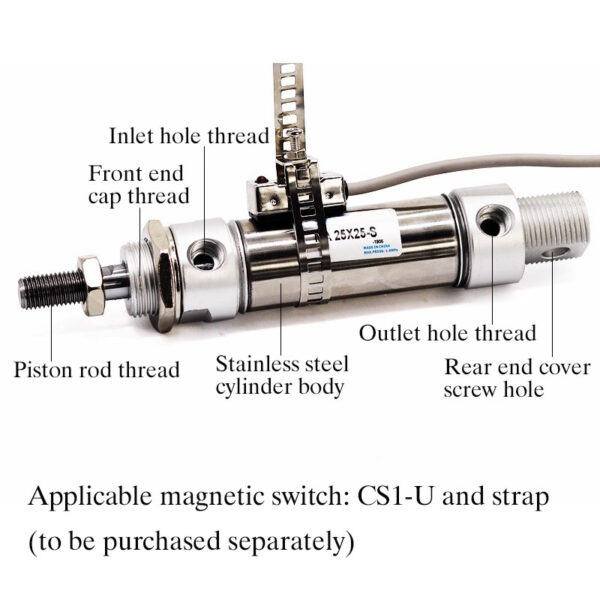

For automation tracking, the CDM2B features a brilliant transparent auto switch bracket. This gives your floor operators crystal-clear visibility of the switch status without having to squint or guess if the sensor is firing correctly. It’s exactly the kind of smart, user-friendly design you want from a high-quality miniature cylinder.

Core Product Specifications

To keep your wholesale catalogs accurate and help your engineering buyers spec their systems perfectly, here are the exact technical details for this specific model.

Specification Element	Technical Detail
Bore Sizes (mm)	16, 20, 25, 32, 40
Motion Pattern	Double Action or Single Action
Port Size	M5×0.8 (ø16), G1/8″ (ø20-32), G1/4″ (ø40)
Operating Speed Range	30 ~ 800 mm/s
Operating Pressure Range	0.1 ~ 0.9 MPa
Standard Stroke (mm)	25 ~ 300 (Multiple increments)

Advantage Summary

The CDM2B metric mini cylinder delivers high-performance pneumatic actuation in an ultra-compact, lightweight stainless steel body. Featuring flexible space-saving options like female rod ends and boss-cut designs, it easily fits restrictive machine layouts. With excellent seal longevity and transparent auto-switch brackets for easy monitoring, it ensures highly reliable, low-maintenance automation.
