Magnetic Gripper SGM High Precision Manufacturing Solution

Description

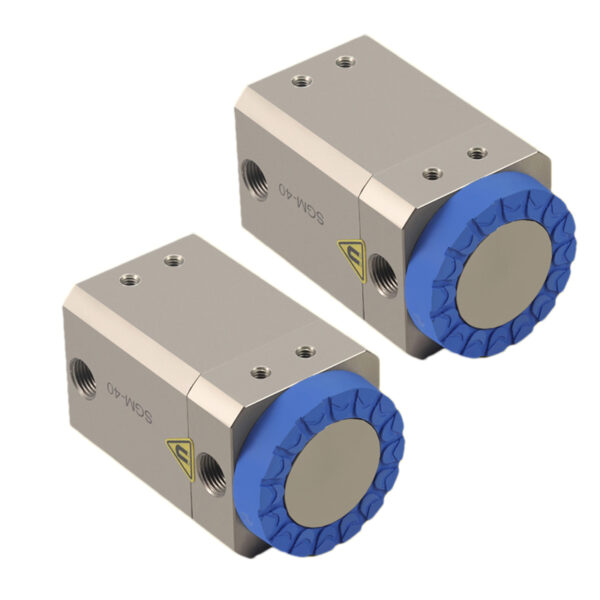

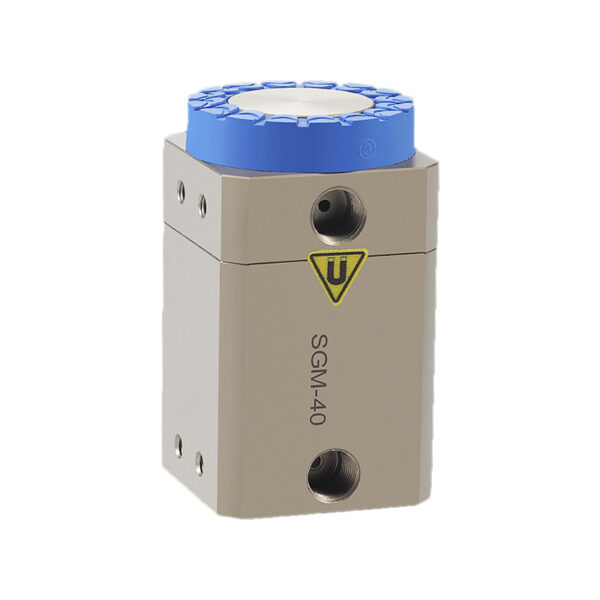

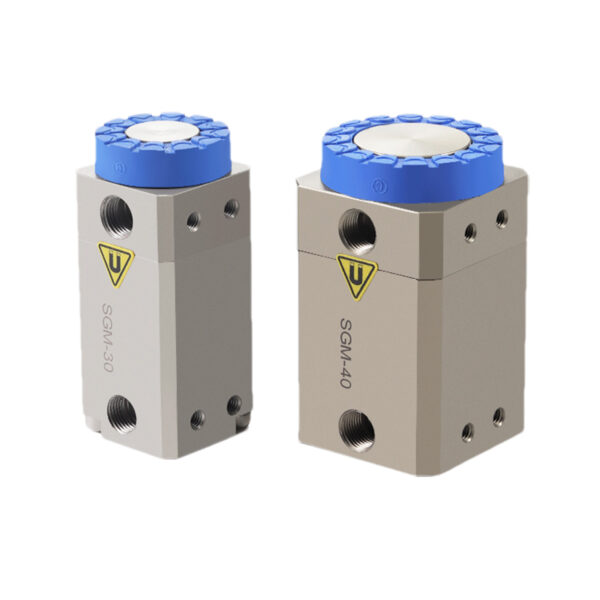

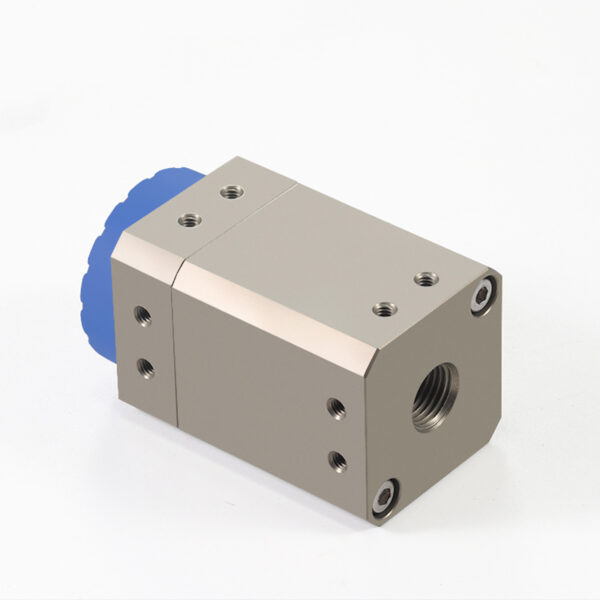

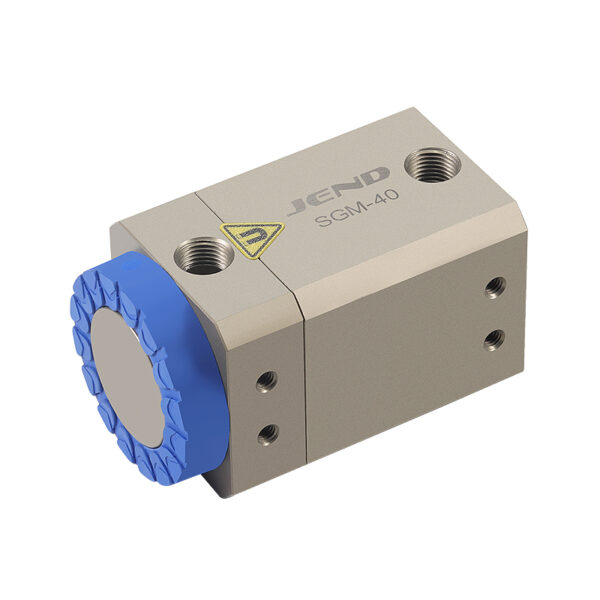

SGM Series: High-Performance Magnetic Suction Cylinder

Pneumatic Permanent Magnet Handling Solution for Metallic Workpieces

The SGM Series (specifically the SGM-30-40) is a professional-grade industrial handling tool engineered for the efficient transport of metal plates. By integrating advanced permanent magnet technology with a pneumatic drive system, this cylinder provides a secure, energy-efficient alternative to traditional vacuum or hydraulic clamping methods,.

——————————————————————————–

Key Engineering Advantages

• Advanced Permanent Magnet Technology: Utilizes high-stability permanent magnets to provide powerful adsorption force, ensuring that workpieces remain securely attached even during high-speed transit.
• Irregular Shape Compatibility: Designed with a high degree of versatility to handle not only standard square and round plates but also irregular or atypical metallic shapes without the risk of sliding or tilting.
• Rapid Operational Cycles: The pneumatic actuation allows for exceptionally fast start and stop times, significantly improving throughput in automated assembly and logistics lines.
• High-Speed Stability: Engineered to maintain a stable grip during rapid acceleration and movement, preventing occupational hazards related to falling workpieces.
• Eco-Friendly Efficiency: Powered by compressed air, this unit consumes less energy and requires less maintenance than comparable electric or hydraulic systems.

——————————————————————————–

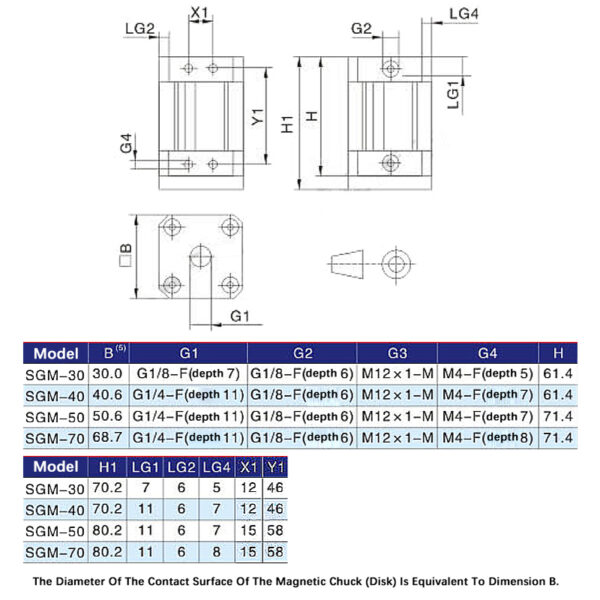

Technical Specifications

Feature	Specification Details	Source
Model	SGM-30-40
Drive Type	Pneumatic (Compressed Air)
Adsorption Method	Permanent Magnet Technology
Workpiece Compatibility	Round, Square, and Irregular Metal Plates
Response Performance	Rapid Start / Rapid Stop
Primary Function	Heavy-duty and High-precision Metal Handling

——————————————————————————–

Application Environments

The SGM series is optimized for diverse industrial sectors where metal handling is a core requirement:

• Automated Manufacturing: Loading and unloading of CNC machines or laser cutters.
• Logistics & Warehousing: Sorting and stacking of metallic components.
• Heavy Machinery Production: Handling of bulky or unusually shaped metal panels.

——————————————————————————–

Operational Safety & Maintenance

1. Workpiece Stability: The SGM-30-40 is specifically designed to eliminate “sliding” and “tilting” issues common in manual or standard mechanical handling.
2. Energy Conservation: Because it utilizes a permanent magnet for holding force, energy consumption is primarily limited to the pneumatic switching of the magnet state.
3. Environmental Adaptability: Suitable for companies focusing on “Green Manufacturing” due to its low carbon footprint compared to electric/hydraulic alternatives.
4. Integration: Its compact design allows for easy integration into existing robotic arms or gantry systems
