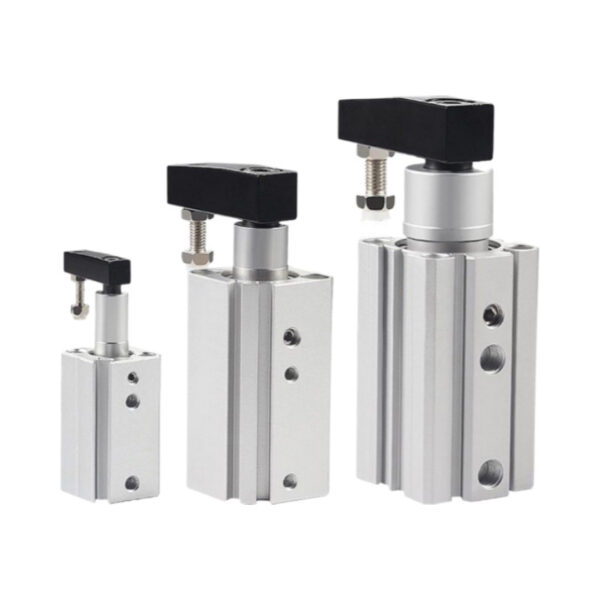

Rotary Clamp Cylinder MKB High Precision Industry Solution
Description
Hey there! Over my years of designing pneumatic systems and wrenching on automated assembly lines, I’ve seen firsthand what happens when a clamping mechanism can’t handle the rotational stress of a fast-paced production environment. When your wholesale buyers or factory tech teams are asking for a bulletproof, high-performance pneumatic rotary clamp, I always point them straight to the Cylinder MKB. It’s an absolute powerhouse designed specifically for heavy-duty workpiece clamping, giving you incredible engineering performance in a highly compact footprint.
Why the MKB Rotary Clamp Cylinder is a Game Changer
In my personal experience on the shop floor, the biggest challenge with rotary clamping is managing the moment of inertia without destroying the internal guide pins. The MKB cylinder handles this lateral stress like a complete champ. Thanks to a completely redesigned internal structure, it boasts a three times higher allowable moment of inertia compared to older, conventional clamping series.
Even better, this massive boost in mechanical strength doesn’t cost you any valuable installation space. The overall length of the MKB has actually been shortened by up to 10mm on larger bore sizes. When you are trying to squeeze a robust actuator into a tight machine layout—places where you’d typically only be able to fit a barebones micro cylinder—the shortened, highly efficient profile of the MKB is an absolute lifesaver.
Hands-On Installation and Switch Integration
For the folks turning wrenches on the floor, mounting and maintenance are an absolute breeze. The MKB basic body offers two distinct types of cylinder mounting right out of the box: through-hole and both-ends tapped. Plus, it features a fantastic 4-surface auto switch mounting design. This means no awkward sensor projections, keeping your machine setup as clean, safe, and snag-free as a standard profile cylinder. You just slide your solid-state switches right into the grooves, and the available 2-color indication lights make setting the exact detection position entirely foolproof.
Quick pro-tip from the field: Always ensure your tooling only engages the workpiece during the straight-line clamp stroke, and never during the rotary stroke itself! Also, to keep lifetime running costs low, the seal kits and internal guide pins are fully replaceable without buying a whole new unit, which your maintenance clients will absolutely love.
Core Product Specifications
To keep your procurement sheets and B2B catalogs highly accurate, here is the exact technical breakdown for this specific MKB configuration:
| Specification Element | Technical Detail |
|---|---|
| Bore Sizes (mm) | 16, 20, 25, 32, 40 |
| Motion Pattern | Double Action or Single Action |
| Port Size | M5×0.8 (ø16), G1/8″ (ø20-32), G1/4″ (ø40) |
| Operating Speed Range | 30 ~ 800 mm/s |
| Operating Pressure Range | 0.1 ~ 0.9 MPa |
| Standard Stroke (mm) | 25 ~ 300 (Multiple increments) |
Whether your clients are building automated welding jigs or complex material handling lines alongside a twin rod cylinder, these exact specifications guarantee reliable, high-speed pneumatic performance day in and day out.
Advantage Summary
The Cylinder MKB delivers exceptional workpiece clamping force with a 3x higher allowable moment of inertia, all packed into a significantly shortened, space-saving body. Featuring versatile tap/through-hole mounting, replaceable internal guides, and 4-surface flush auto switch integration, it offers unmatched durability, simple maintenance, and high-speed precision for heavy-duty industrial automation.
