Description

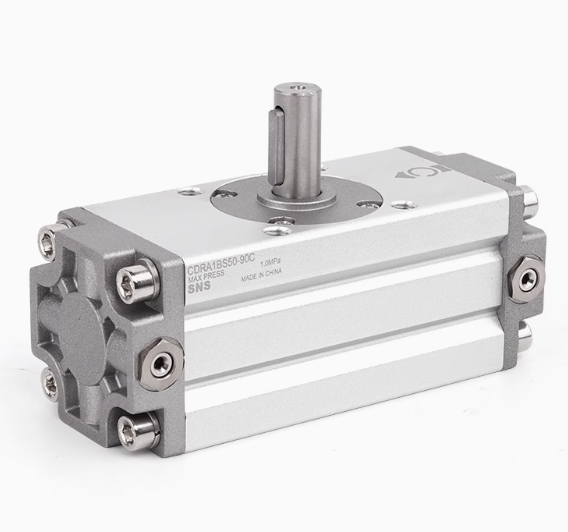

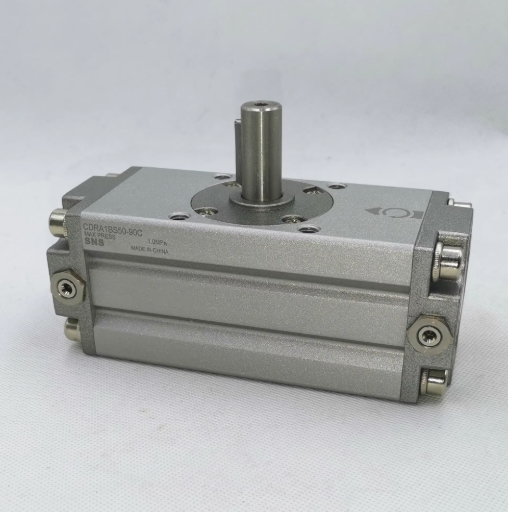

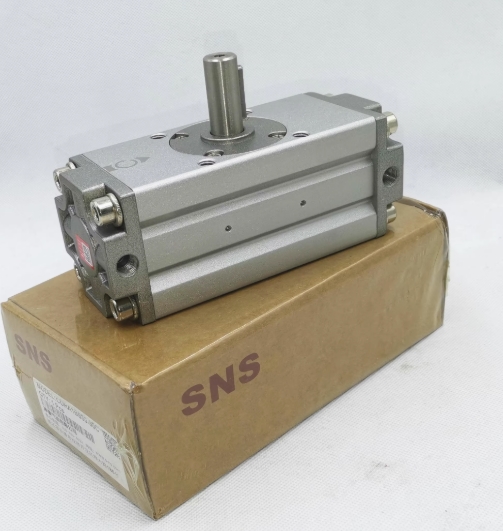

CRQ2 Series: High-Precision Compact Rotary Actuator

Rack & Pinion Design for Versatile Automation

The CRQ2 Series is a compact, rack-and-pinion style rotary actuator engineered for high-performance automation tasks. Designed with a double-piston construction, it provides a stable, backlash-free torque output in a space-saving package where the actuator body itself serves as a mounting flange.

——————————————————————————–

Key Technical Features

Integrated Angle Adjustment: Each unit is equipped with an adjustment mechanism allowing for a precision tuning range of ±5° at each rotation end.
Double Piston Construction: The rack-and-pinion design utilizes two pistons to ensure consistent torque and eliminate backlash throughout the rotation.
Compact Integration: Piping ports and auto-switch mounting slots are strategically placed on the same side of the body to facilitate one-end installation and realize significant space savings.
Mounting Versatility: Both single-shaft and double-shaft configurations are available across all sizes (10, 15, 20, 30, and 40).
Easy Positioning: The body features a built-in pin hole for rapid and accurate centering during installation.

——————————————————————————–

Technical Specifications

The CRQ2 series is designed for non-lubricated air systems, offering robust performance within the following parameters:

Feature	Size 10	Size 15	Size 20	Size 30	Size 40
Max. Operating Pressure	0.7 MPa	0.7 MPa	1.0 MPa	1.0 MPa	1.0 MPa
Min. Operating Pressure	0.15 MPa	0.15 MPa	0.1 MPa	0.1 MPa	0.1 MPa
Output Torque (at 0.5 MPa)	0.3 N·m	0.75 N·m	1.8 N·m	3.1 N·m	5.3 N·m
Cushion Type	Rubber Bumper	Rubber Bumper	Air Cushion	Air Cushion	Air Cushion
Port Size	M5 x 0.8	M5 x 0.8	Rc 1/8*	Rc 1/8*	Rc 1/8*
Rotation Angles	–	–	90°, 180°, 360°	–	–

*Also available in G 1/8, NPT 1/8, and NPTF 1/8 thread types.

Operating Parameters

Fluid: Air (Non-lube).
Ambient & Fluid Temperature: 0°C to 60°C (no freezing).
Rotation Angle Range:
- 90°: 80° to 100°.
- 180°: 170° to 190°.
- 360°: 350° to 370°.
Rotation Time Adjustment (s/90°):
- Size 10, 15: 0.2 to 0.7.
- Size 20, 30, 40: 0.2 to 1.0.

——————————————————————————–

Standard Mass (Weight Data)

Size	90° Rotation	180° Rotation	360° Rotation
10	120 g	150 g	200 g
15	220 g	270 g	380 g
20	600 g	700 g	1000 g
30	900 g	1100 g	1510 g
40	1400 g	1600 g	2280 g
Data excludes the mass of auto switches.

——————————————————————————–

Shaft Configuration Options

The CRQ2 series offers several shaft types to meet diverse application requirements:

Single Shaft (S): Standard configuration with one output shaft.
Double Shaft (W): Features output on both ends.
Round Shafts (T/K): Available in single (T) or double (K) round profiles without keys.
Custom Profiles: Variations include four chamfers (X/Z) or shafts with specific keyways (Y/J).

——————————————————————————–

Ordering Configuration Guide

To ensure the correct specification for your system, use the following standardized format:

Magnet Ring: Built-in as standard for auto switch compatibility.
Size: Select from 10, 15, 20, 30, or 40.
Port Thread: Select based on size (M5 or 1/8 series).
Rotation Angle: Specify 90, 180, or 360 degrees.
Cushion: Nil (No cushion for Size 10/15) or C (Air Cushion for Size 20/30/40).
Auto Switches: Compatible with a wide range of solid-state and reed switches (e.g., M9, A9 series).

——————————————————————————–

Engineering Reminders

Kinetic Energy: Do not exceed the allowable kinetic energy values (e.g., 0.4 J for Size 40 with air cushion) as it may result in internal product failure.
External Stoppers: If high-precision rotation repeatability is required, it is recommended to use external stoppers to define the mechanical end.
Filtration: To ensure longevity, air supply should be filtered by an element of 5 μm or smaller
