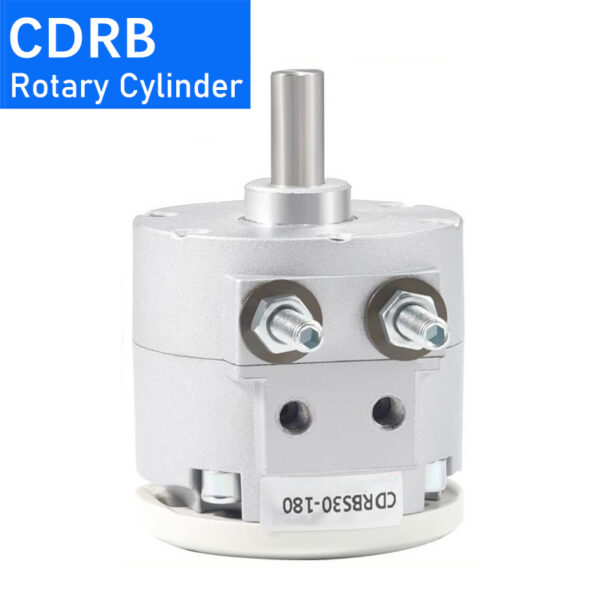

Series CDRBS: High-Performance Slim Vane-Type Rotary Actuator

Standard Type with Integrated Magnetic Sensing

The Series CDRBS is a precision-engineered, slim vane-type rotary actuator designed for high-speed industrial applications where space-saving and weight reduction are critical,. This standard model comes equipped with a built-in magnet ring as a default feature, allowing for seamless integration of position sensors for automated cycle monitoring,.

——————————————————————————–

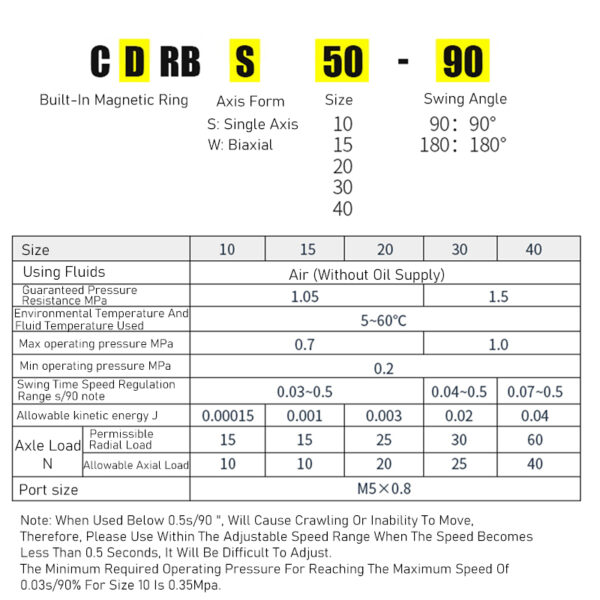

Technical Specifications

Bore Size (mm)	10	15	20	30	40
Rotation Angles	—	—	90°, 180°, 270°	—	—
Fluid	—	—	Compressed Air (Non-lube)	—	—
Max. Operating Pressure (MPa)	0.7	0.7	1.0	1.0	1.0
Min. Operating Pressure (MPa)	0.2	0.2	0.2	0.2	0.2
Proof Pressure (MPa)	1.05	1.05	1.5	1.5	1.5
Ambient & Fluid Temp.	—	—	5 to 60°C	—	—
Rotation Time Range (s/90°)	0.03~0.5	0.03~0.5	0.04~0.5	0.04~0.5	0.07~0.5
Port Size	M5x0.8 / M3x0.5*	M5x0.8 / M3x0.5*	M5x0.8	M5x0.8	M5x0.8

*For sizes 10 and 15, M3x0.5 is used for 270° specifications; M5x0.8 is used for 90° and 180°.

——————————————————————————–

Dynamic Performance & Load Capacity

To ensure operational longevity, the following kinetic energy and load limits must be observed during system design:

Bore Size (mm)	Allowable Kinetic Energy (J)	Allowable Radial Load (N)	Allowable Axial Load (N)	Source
10	0.00015	15	10	,
15	0.001	15	10	,
20	0.003	25	20	,
30	0.02	30	25	,
40	0.04	60	40	,

——————————————————————————–

Physical Characteristics & Weight Efficiency

The CDRBS series offers a significantly reduced footprint and mass compared to conventional rotary actuators, facilitating faster movement and reduced inertia in robotic arms and pick-and-place systems.

Weight Reduction: Achieve up to 48% reduction in weight compared to previous designs (e.g., Size 20 weight reduced from 222g to 115g).
Total Length Reduction: Compact body design reduces overall length by up to 44% in select models.
Standard Weights (g):
- ø10: 39g | ø15: 62g | ø20: 115g | ø30: 216g | ø40: 380g,.

——————————————————————————–

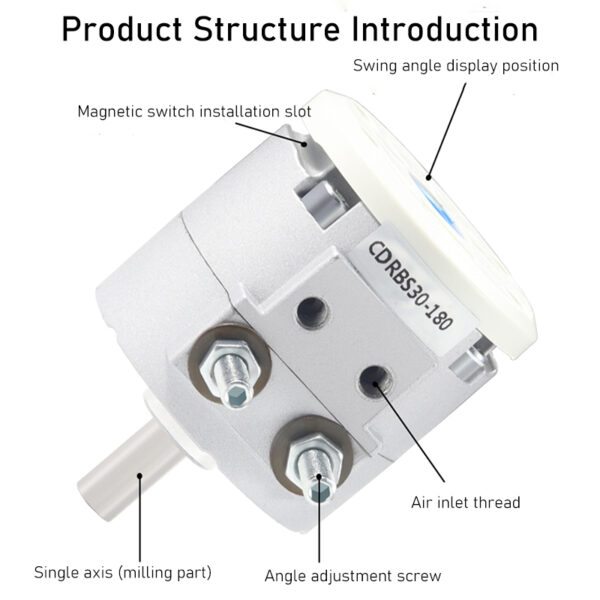

Mounting and Integration

Interchangeability: Mounting hole patterns and shaft dimensions are maintained for backwards compatibility with existing industrial standards.
Standard Shaft: Equipped with a single-shaft configuration.

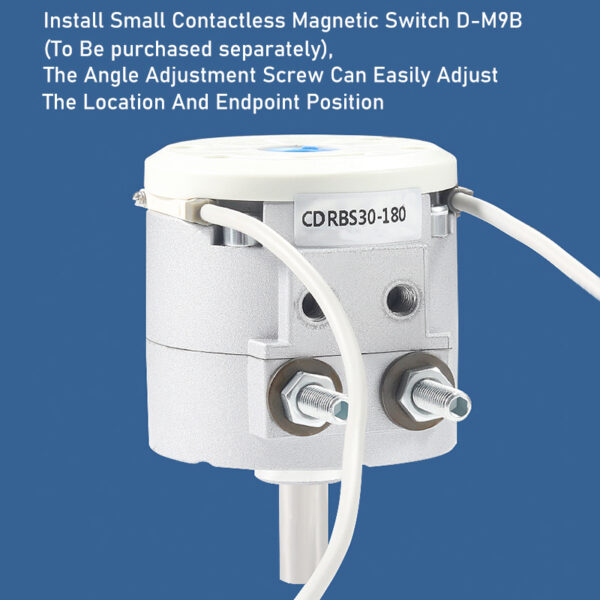

Sensor Compatibility: Specifically designed for use with D-M9 series auto-switches (2-wire D-M9B or 3-wire NPN D-M9N) for precise position feedback,.

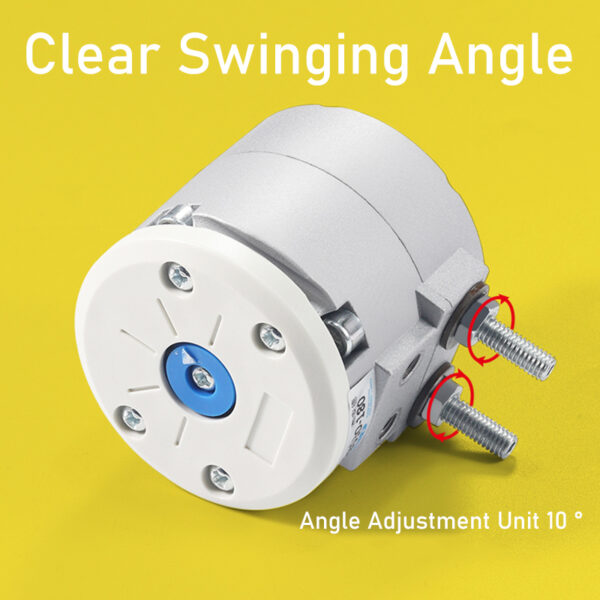

Angle Tolerances:
- 90°: +4° / 0° (sizes 20, 30, 40),.
- 180°: +4° / 0° (sizes 20, 30, 40),.
- 270°: +4° / 0° (sizes 20, 30, 40).

——————————————————————————–

Operational Safety Notes

Low-Speed Control: Operation slower than 0.5s/90° may result in stick-slip phenomena; always operate within the specified speed range for consistent performance,.
Size 10 Start-up: For Bore Size 10 to reach maximum speed (0.03s/90°), a minimum operating pressure of 0.35 MPa is required
