Description

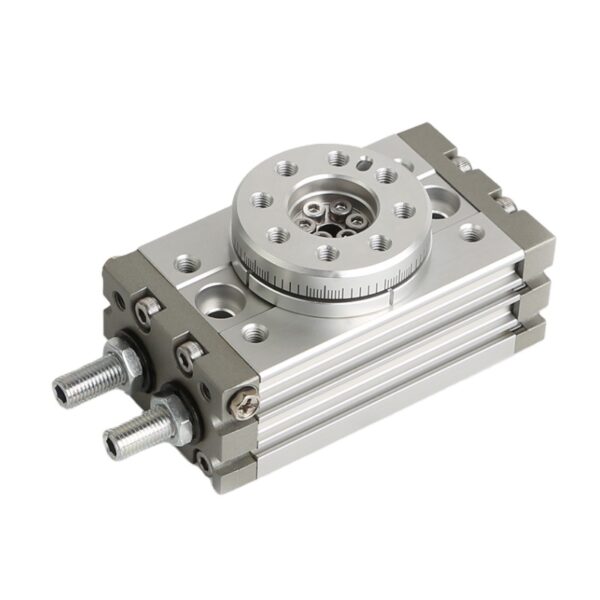

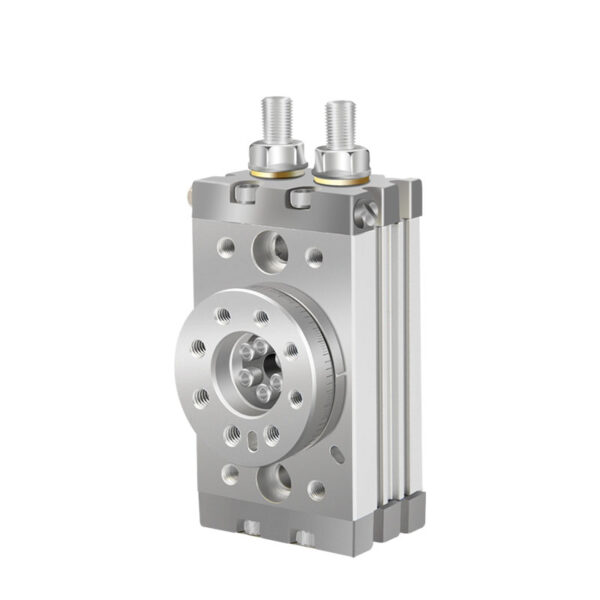

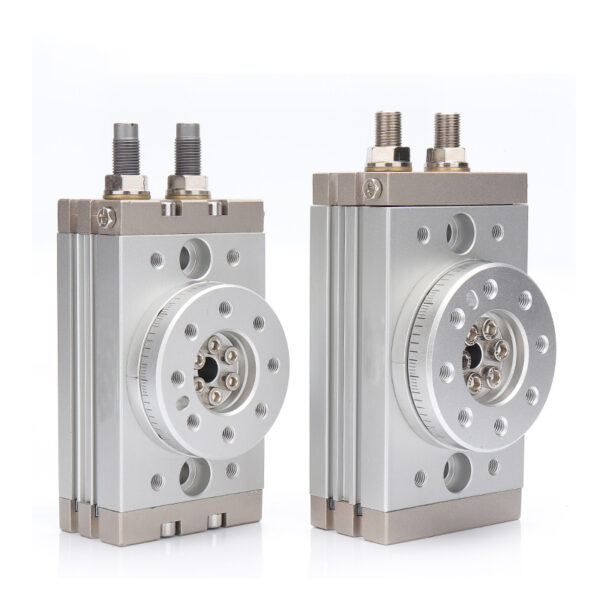

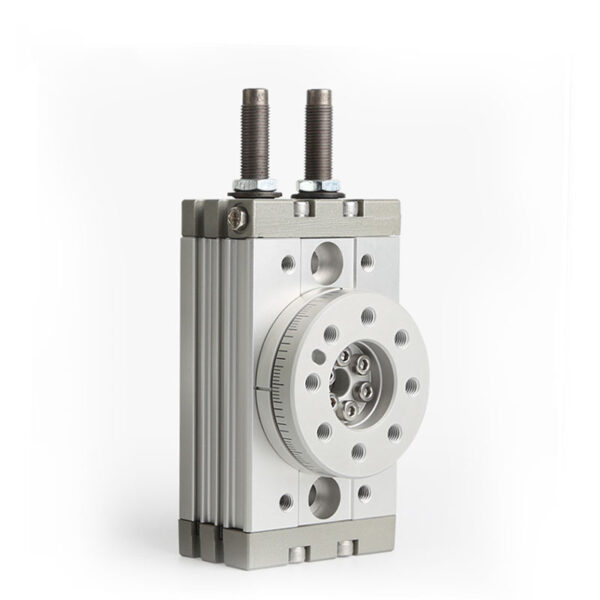

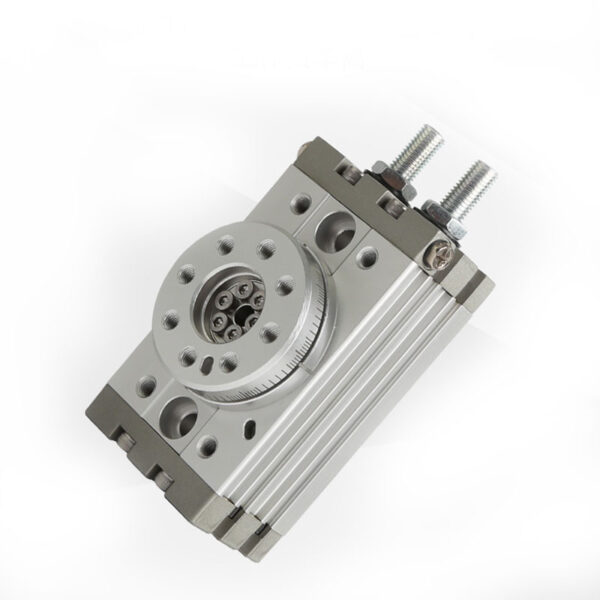

Hey there! Over the years, I’ve set up countless automated assembly lines, and I know exactly how frustrating it can be when a standard rotary actuator simply can’t handle heavy axial loads without wearing out prematurely. When my wholesale clients ask for a rock-solid, low-profile rotary solution for their most demanding applications, I consistently point them directly to the Rotary Table MSQB. It’s a basic-type, rack and pinion style actuator that completely redefines what a compact table can achieve on the factory floor. Whether I’m retrofitting a tight robotic cell or building a brand-new, high-speed material handling station, the MSQB delivers the kind of heavy-duty reliability that keeps operations running smoothly without requiring constant maintenance.

Why the MSQB Rotary Table Dominates the Shop Floor

In my hands-on experience, the absolute standout feature of the MSQB is its incredibly large rolling element bearing. This robust design allows the table to handle three to four times higher axial loads compared to conventional models. You really don’t have to worry about table play or loss of accuracy when the machine speeds up and the inertial forces kick in. Plus, with the optional internal shock absorbers, you are getting up to five times more allowable kinetic energy. This gives you much faster cycle times without tearing the internal pneumatic components apart over time. It is built like an absolute tank, yet it maintains a remarkably low table height that easily fits into spaces where bulkier units simply can’t operate.

Unmatched Installation Versatility

One of the things floor techs and system integrators love most about this unit is how incredibly easy it is to install in the field. It offers free mounting from multiple directions—you can securely bolt it down from the side, the bottom, or the top depending on your machine’s mechanical layout. Even better, it allows pneumatic piping from two different directions (both front and side), which means you can route your air lines cleanly out of the way of moving parts. If you’ve ever struggled to plumb a complex profile cylinder in a cramped, hard-to-reach chassis, you’ll immediately appreciate the thoughtful, space-saving port placement on the MSQB.

Precision Control and Adjustability

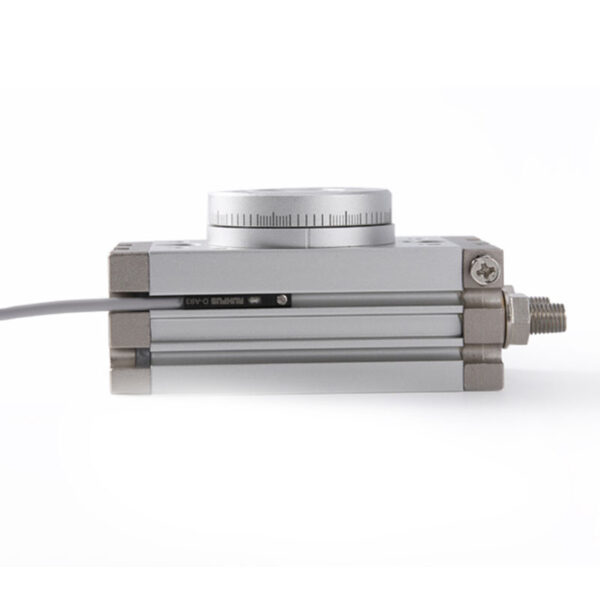

Dialing in the exact rotation for your automation sequence is an absolute breeze. The MSQB offers a highly flexible pivoting angle adjustment range from 0 to 190 degrees, allowing for incredibly precise workpiece positioning. You can easily integrate solid-state or reed auto switches directly into the body grooves for seamless PLC feedback and cycle monitoring. It provides the kind of synchronized, high-speed performance you’d typically expect when pairing it alongside a precision twin rod cylinder or a heavy-duty panel mount pin cylinder.

Core Product Specifications

To keep your procurement catalogs highly accurate and help your buyers make informed decisions, here are the exact technical specifications for this specific MSQB configuration:

Specification Element	Technical Detail
Bore Sizes (mm)	16, 20, 25, 32, 40
Motion Pattern	Double Action or Single Action
Port Size	M5×0.8 (ø16), G1/8″ (ø20-32), G1/4″ (ø40)
Operating Speed Range	30 ~ 800 mm/s
Operating Pressure Range	0.1 ~ 0.9 MPa
Standard Stroke (mm)	25 ~ 300 (Multiple increments)

Whether you’re stocking retail shelves or upgrading your facility’s pneumatic networks, this rotary table pairs perfectly with any high-grade micro cylinder to complete your advanced automation circuit.

Advantage Summary

The Rotary Table MSQB delivers exceptional rack and pinion performance using a large rolling element bearing to accommodate significantly higher axial loads. Its compact, low-profile design allows highly versatile top, bottom, or side mounting. Featuring flexible dual-direction piping and a 190-degree adjustable pivoting angle, it ensures reliable, space-saving, and precise workpiece manipulation.
