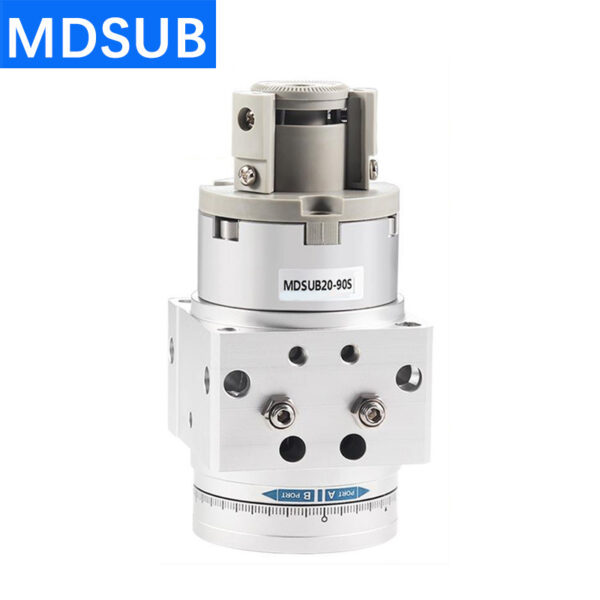

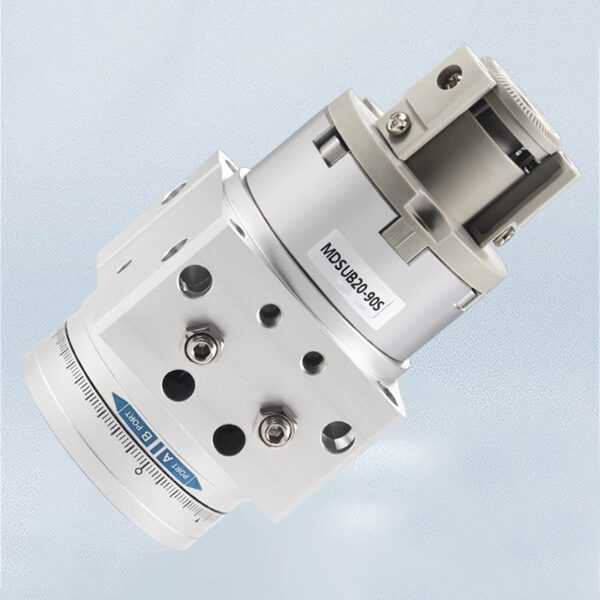

Series MSUB: High-Precision Rotary Table

Compact Vane-Type Rotary Actuator for Industrial Automation

The Series MSUB is a high-precision rotary table designed for compact automation applications requiring accurate angular positioning and robust load-bearing capabilities. Utilizing a vane-type design, it offers a lightweight and space-saving “free-mount” configuration, allowing for flexible installation in various orientations.

——————————————————————————–

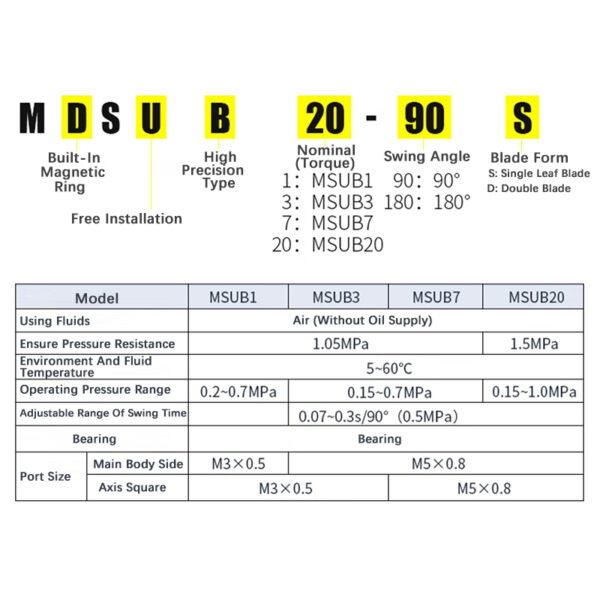

Technical Specifications

The Series MSUB is engineered for unlubricated air operation within a wide range of industrial environments.

Feature	Specification Details	Source
Bore Sizes (Nominal)	1, 3, 7, 20
Vane Configuration	Single Vane (S) or Double Vane (D)
Rotation Angles	90° or 180° (180° available for Single Vane only)
Fluid	Air (Non-lubricated)
Operating Pressure Range	0.15 to 1.0 MPa (21.75 to 145 psi)*
Proof Pressure	1.05 to 1.5 MPa (152 to 217.5 psi)
Ambient & Fluid Temp.	5 to 60°C (41 to 140°F)
Rotation Time Adj.	0.07 to 0.3 seconds per 90°
Port Sizes	M3 x 0.5 (Sizes 1, 3) / M5 x 0.8 (Sizes 7, 20)

*Min. operating pressure varies by size: 0.15 MPa for Size 1/3/7; 0.2 MPa for Size 20.

——————————————————————————–

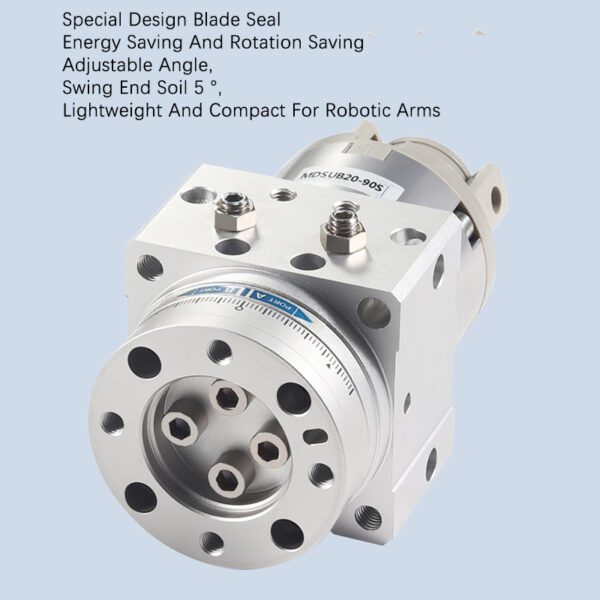

High-Precision Angle Adjustment

The Series MSUB features integrated adjustment bolts that allow for precise tuning of the rotation range at both ends of the stroke.

Single Vane Type: Offers a total adjustment range of ±10° (±5° at each end of the rotation).
Double Vane Type: Offers a total adjustment range of ±5° (±2.5° at each end of the rotation).
Adjustment Range Examples: For a 90° model, the single vane type is adjustable from 80° to 100°, while the double vane type is adjustable from 85° to 95°.

——————————————————————————–

Allowable Load Capacities

To ensure service life and prevent loss of accuracy, the load applied to the table must remain within the following parameters:

Size	Allowable Radial Load (N)	Allowable Thrust Load (N)	Allowable Moment (N·m)
MSUB1	20	15 (Directional)	0.3
MSUB3	40	30 (Directional)	0.7
MSUB7	50	60 (Directional)	0.9
MSUB20	60	80 (Directional)	2.9

——————————————————————————–

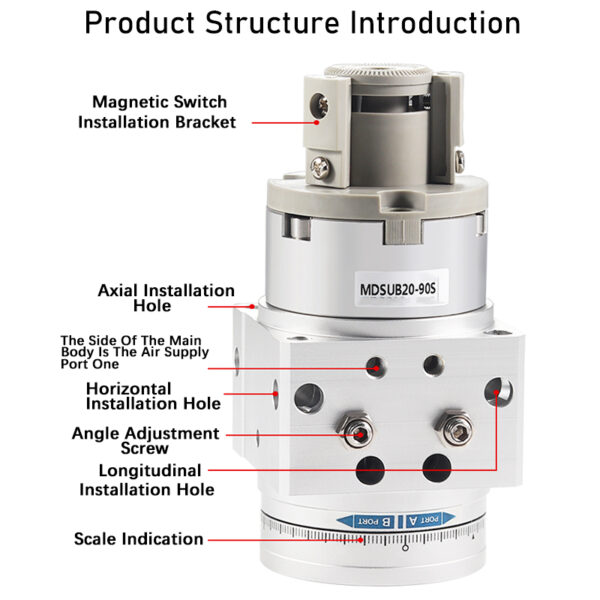

Structural Composition

Constructed with industrial-grade materials for durability and performance stability:

Body: High-strength Aluminum Alloy (Light gray finish).
Vane Shaft: Stainless Steel (Carbon Steel for Size 20).
Bearings: High carbon chrome bearing steel.
Seals: NBR (Nitrile Rubber).
Adjustment Bolts: Carbon Steel.

——————————————————————————–

Key Performance Features

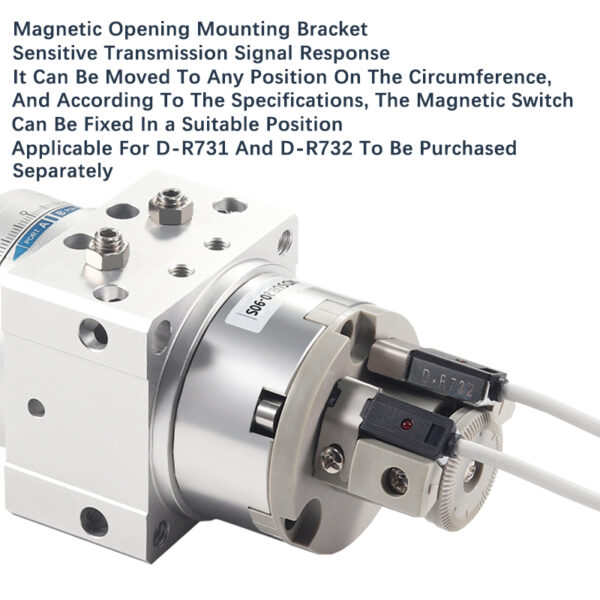

Auto Switch Integration: Compatible with both Reed (e.g., D-90, D-R73) and Solid State (e.g., D-S99, D-T79) auto switches for precise end-of-stroke detection.
Flexible Porting: Available with either Side Ports or Top Ports (SE type) to accommodate tight installation spaces.
Free-Mount Capability: The actuator body features a “Free-mount” design with multiple mounting holes and a positioning pin hole on the table surface for rapid, accurate alignment.
Maintenance: Gripper and rotary sections are modular, allowing for easier maintenance and component replacement
