Description

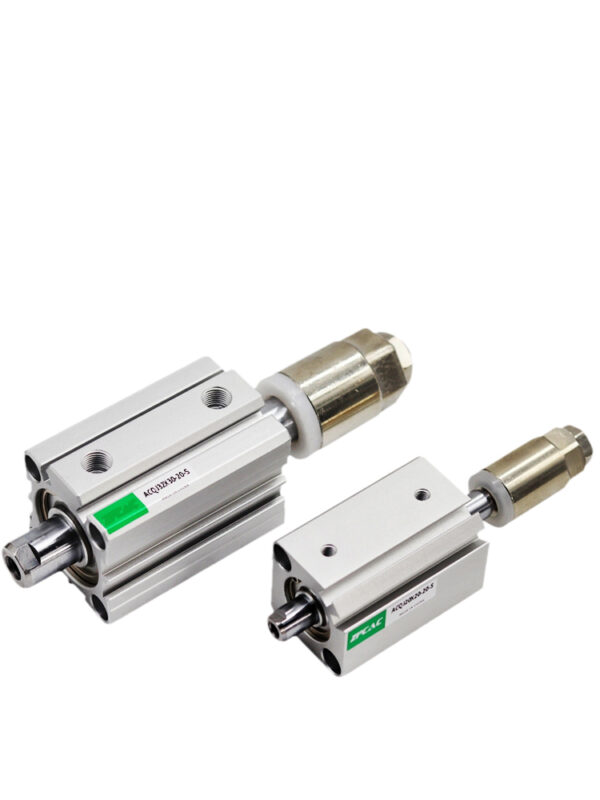

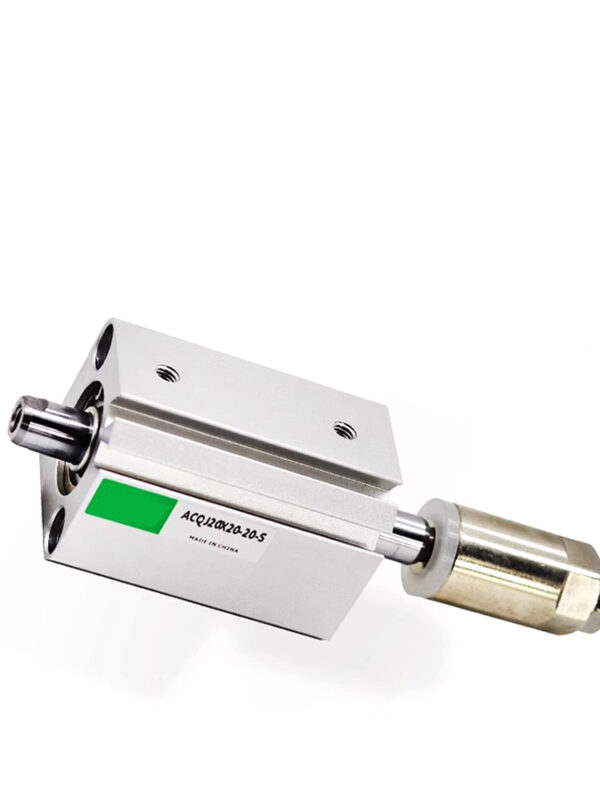

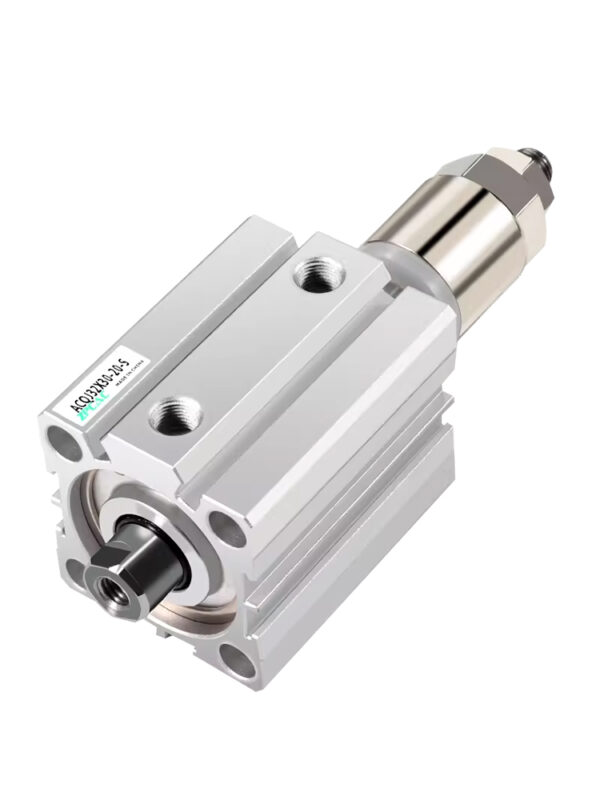

SDAJ Series: Compact Pneumatic Cylinder Space-Saving Design with High-Precision Performance The SDAJ series is a high-performance compact pneumatic cylinder designed for applications where space is at a premium . Featuring a small axial size and a lightweight, aesthetic structure, this cylinder offers a streamlined solution for modern automation .

Key Features & Advantages Compact & Lightweight: The integrated design minimizes the overall footprint, making it ideal for tight mechanical environments . Direct Installation: Engineered for efficiency, this series allows for direct mounting without the requirement of additional accessories . Versatile Motion Patterns: Supports multiple operational modes, including double-acting, single-acting return, and single-acting extend . Adjustable Stroke: The stroke can be precisely adjusted to meet specific application requirements . High-Temperature Options: Specialized high-temperature resistant types are available for demanding thermal environments . Durability: Utilizes purified dry compressed air and is compatible with both lubricated and non-lubricated operation .

Technical Specifications Feature Specification Bore Sizes (mm) 12, 16, 20, 25, 32, 40, 50, 63, 80, 100 Operating Pressure 0.1 – 0.9 MPa Operating Temperature -5 to 70℃ Working Medium Purified dry compressed air Speed Range 30 ~ 500mm/s (varies by model) Stroke Range 20mm to 100mm (adjustable)

Industrial Applications The SDAJ series is widely utilized across a broad spectrum of automated industries, including : Robotics & Manipulators Packaging & Carton Machinery CNC Processing Centers Textile & Printing Machinery Medical & Environmental Protection Equipment
