Description

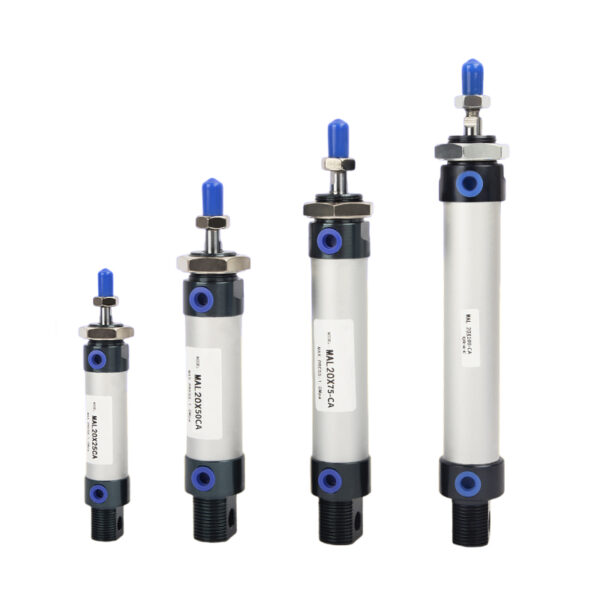

MAL Series Aluminum Alloy Mini Cylinder

High-Precision Pneumatic Solution for Industrial Automation

The MAL Series is a range of high-quality aluminum alloy mini cylinders designed for space-sensitive and high-performance automation tasks. With a variety of back cover configurations and mounting options, these cylinders provide versatile, reliable linear motion across various industrial sectors.

——————————————————————————–

Technical Specifications

Engineered for durability and precision, the MAL series adheres to the following technical standards:

Feature	Specification
Bore Sizes (mm)	16, 20, 25, 32, 40
Motion Pattern	Double Action or Single Action
Working Medium	Filtered Air
Operating Pressure Range	0.1 ~ 0.9 MPa
Ensured Pressure Resistance	1.35 MPa
Operating Temperature Range	-5 ~ 70°C
Operating Speed Range	30 ~ 800 mm/s
Buffer Type	Anti-crash Buffer (Standard) / Adjustable Buffer
Port Size	M5×0.8 (ø16), G1/8″ (ø20-32), G1/4″ (ø40)

——————————————————————————–

Stroke Range & Capability

The MAL series supports a wide range of stroke lengths to accommodate different mechanical requirements:

Bore (mm)	Standard Stroke (mm)	Max. Stroke	Permissible Stroke
16	25, 50, 75, 80, 100, 125, 160, 175, 200	300	500
20	25 ~ 300 (Multiple increments)	500	650
25	25 ~ 500 (Multiple increments)	500	650
32	25 ~ 500 (Multiple increments)	500	650
40	25 ~ 500 (Multiple increments)	500	650

——————————————————————————–

Precision Internal Construction

The reliability of the MAL cylinder is driven by its high-grade internal components:

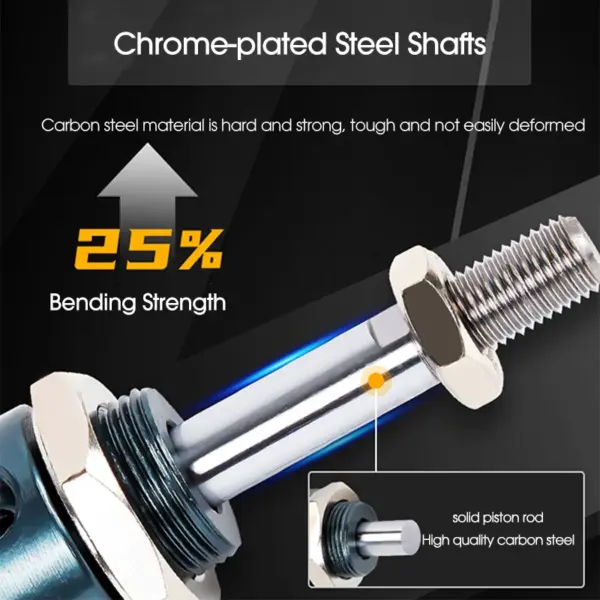

Piston Rod: High-strength steel with Piston Rod Nut.

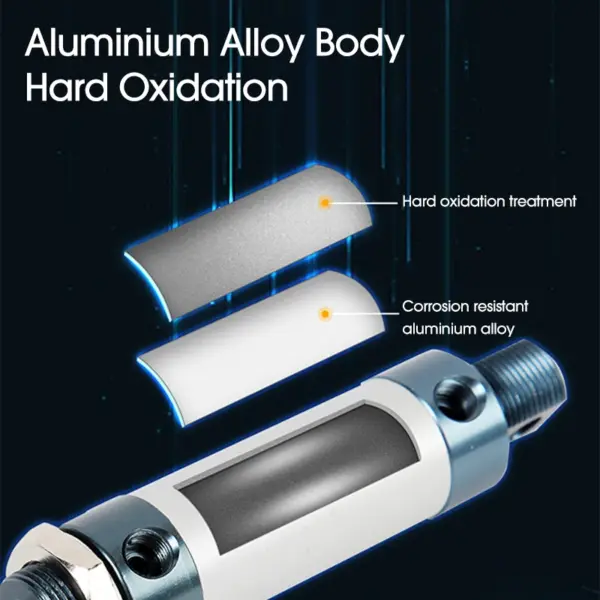

Tube: Anodized Aluminum Tube for corrosion resistance and low friction.
Seals: High-performance Piston and Rod O-rings for leak-proof operation.
Bearings: Oil-retaining bearings to ensure smooth rod movement.
Wear Ring: Integrated to reduce friction and extend the service life.

——————————————————————————–

Configuration & Mounting Options

Customize the cylinder to fit your specific application through our flexible ordering system:

Back Cover Types: Standard (Eye Mounting), CM (Round Rear Cover), or U (Flat Rear Cover).
Mounting Styles:
- LB: Front & back fixed type (Foot Brackets).
- FA: Front cover fixed type (Front Flange).
- SDB: Back cover fixed type (Clevis/Pivot Bracket).
Magnet Capability: Available with an optional internal magnetic ring (S-code) for position sensing using magnetism switches.

——————————————————————————–

Dimensional Data (Standard MAL Type)

All dimensions in mm

Bore	A	B	C	D	E	F	G	H	L	X (Port)
16	114	38	60	16	22	16	10	16	M16×1.5	M5
20	131	40	70	21	28	12	16	20	M22×1.5	G1/8″
25	135	44	70	21	30	14	16	22	M22×1.5	G1/8″
32	141	44	70	27	30	14	16	22	M24×2.0	G1/8″
40	165	45	92	27	32	14	22	24	M30×2.0	G1/4″
