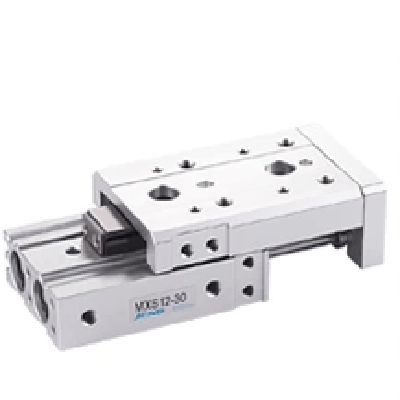

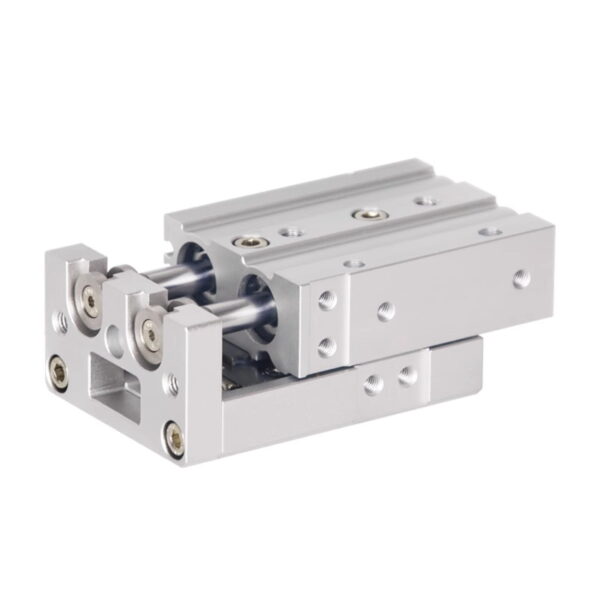

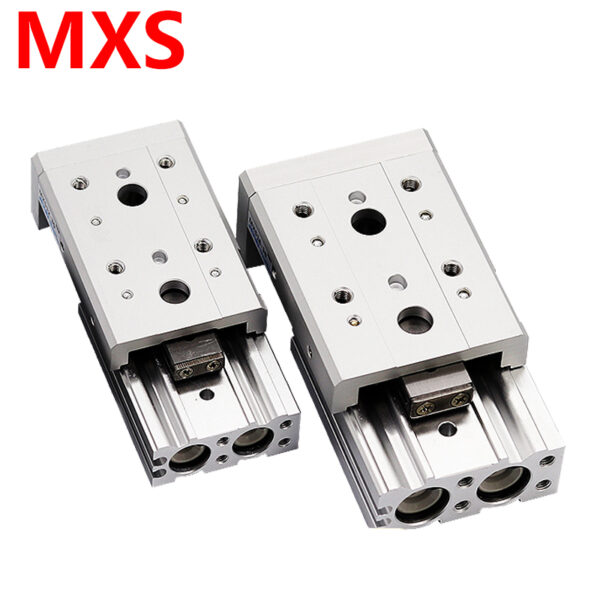

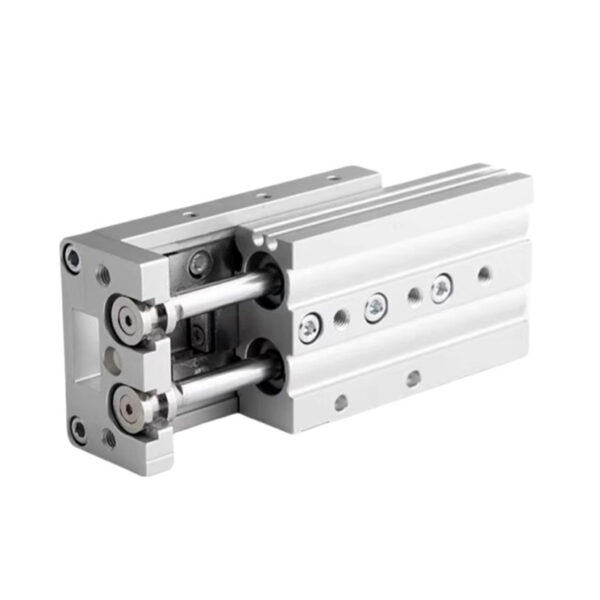

MXS Series: Precision Air Slide Table

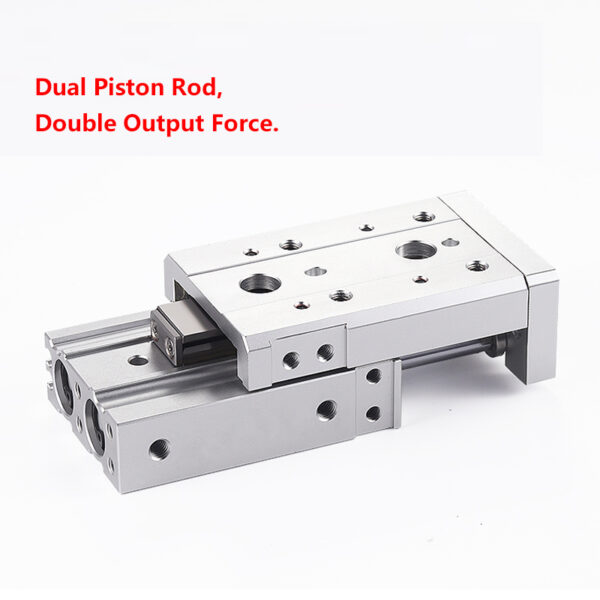

The MXS Series is a high-performance linear actuator that integrates a work table and an air cylinder into a single compact unit. Designed for precise assembly and high-accuracy automation, this series utilizes a cross roller guide and a dual piston rod design to provide superior rigidity and twice the thrust of standard cylinders.

——————————————————————————–

1. Core Technical Specifications

The following performance benchmarks define the operational parameters for the standard MXS series:

Feature	Specification Details	Data Source
Bore Sizes (mm)	ø6, ø8, ø12, ø16, ø20, ø25
Fluid	Compressed Air
Action	Double Acting
Operating Pressure	0.15 to 0.7 MPa (22 to 101 psi)
Proof Pressure	1.05 MPa (152 psi)
Ambient & Fluid Temp.	–10 to 60°C (No freezing)
Piston Speed	50 to 500 mm/s
Cushion Type	Rubber bumper (Standard) or Shock absorber (Optional)
Stroke Tolerance	+1.0 / 0 mm
Lubrication	Not required (Non-lube)

——————————————————————————–

2. Theoretical Output Force (Unit: N)

The dual rod construction ensures significant thrust output across various operating pressures:

Bore Size	Rod Size (mm)	Direction	0.3 MPa	0.5 MPa	0.7 MPa
ø6	3	OUT / IN	17 / 13	29 / 21	40 / 29
ø12	6	OUT / IN	68 / 51	113 / 85	158 / 119
ø16	8	OUT / IN	121 / 91	201 / 151	281 / 211
ø20	10	OUT / IN	188 / 141	314 / 236	440 / 330
ø25	12	OUT / IN	295 / 227	491 / 378	687 / 529

——————————————————————————–

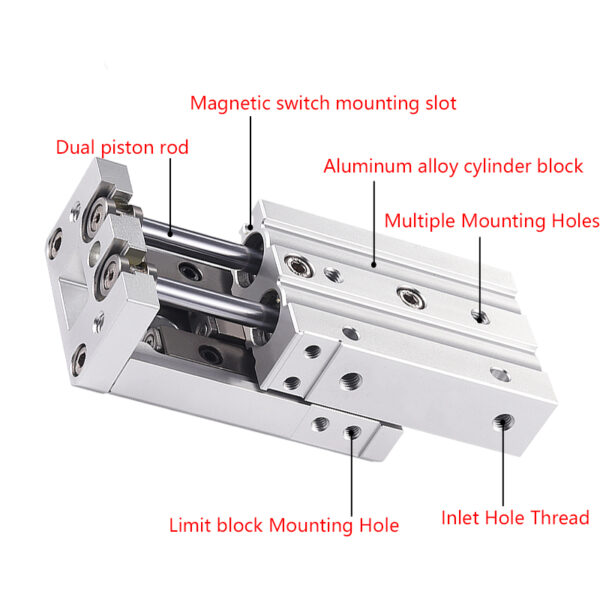

3. Engineering Features & Integration

Multi-Directional Mounting: The body features threaded holes and through-holes allowing for lateral or axial mounting to suit complex machine layouts.
Precision Guidance: The cross roller guide ensures smooth motion with high non-rotating accuracy, ranging from ±0.7° to ±1.4° depending on the bore size.
Symmetric Configuration: Symmetric styles are available to facilitate balanced multi-axis designs where space and piping symmetry are required.

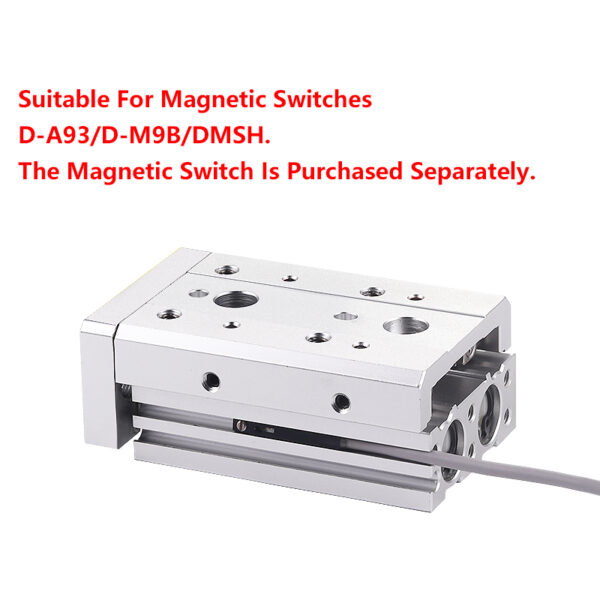

Flush Sensing: Integrated housing grooves allow for the flush installation of reed or solid-state auto switches, protecting sensors from mechanical interference.

——————————————————————————–

4. Functional Options & Customization

The MXS series can be customized with several functional enhancements to optimize specific automation workflows:

Stroke Adjuster: Allows precision tuning of the stroke range from 0 to 5mm.
Shock Absorber: Absorbs collision at the stroke end for smooth stops (available for all sizes except ø6).
Buffer Mechanism: Protects workpieces and tools by absorbing shock if positioning is inaccurate during load insertion.
End Lock: Keeps the cylinder at its original position to prevent load drops during air supply failure (available for all sizes except ø6).
Axial Piping: Saves space around the body by centralizing the air supply in the axial direction.

——————————————————————————–

5. Material Construction

Component	Material	Treatment/Notes
Body / Table	Aluminum Alloy	Hard Anodized
Rail / Guide	Carbon Tool Steel	Heat Treated
Piston Rod / Rod	Stainless Steel	High Precision
Seals (Piston/Rod)	NBR	High-durability Nitrile
Bumper	Polyurethane	Impact absorption
Magnet	Rare Earth	Integrated for sensing
