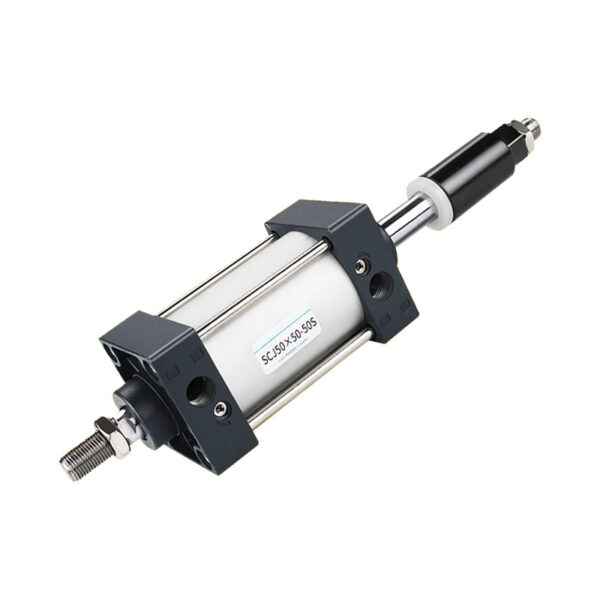

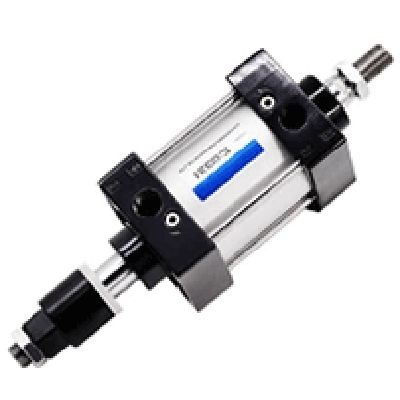

Why the Tie-rod Cylinder with Adjustable Stroke SCJ is My Top Pick

Hey there! Over my years spent designing pneumatic systems and wrenching on heavy-duty factory lines, I’ve learned that finding an actuator with the perfect mechanical reach can be a massive headache. When my wholesale clients and machine-building teams need absolutely precise linear motion combined with bulletproof reliability, I always point them straight to the Tie-rod Cylinder with Adjustable Stroke SCJ. It brings incredible durability and exact stroke tuning right to your shop floor, ensuring your automated setups run flawlessly day in and day out.

Unmatched Tie-Rod Reliability and Space-Saving Design

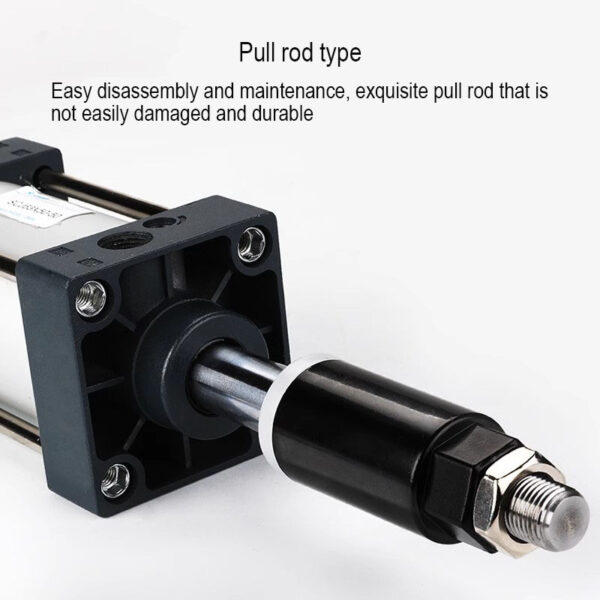

In my hands-on experience, you just can’t beat the structural integrity of a proper tie-rod design. The SCJ series uses carbon steel tie-rods to tightly join the aluminum alloy cylinder barrel and the front/rear caps, delivering high reliability even under aggressive, continuous cycling. What I really love about this unit is that it maintains a surprisingly tight dimension, keeping the overall footprint shorter than typical standardized cylinders of the same bore size. Whether you are integrating it into tight compact pneumatic configurations or building out much larger heavy-duty extrusion assemblies, the SCJ slides perfectly into your layout without hogging valuable space.

Precision Tuning and Advanced Sealing Technology

The standout feature here is obviously the adjustable stroke capability. Instead of forcing your floor techs to rebuild brackets when a stroke length is just a few millimeters off, the SCJ allows for quick, on-the-fly mechanical tuning to dial in your exact reach.

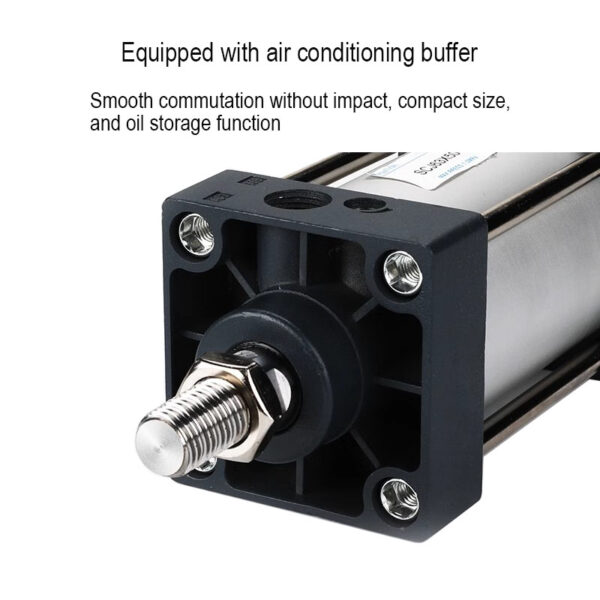

Internally, the piston utilizes a highly advanced heterogeneous two-way seal structure. This acts as a built-in oil reservation system, keeping the 20μm chrome-plated piston rod running smoothly and significantly extending the time between maintenance intervals. Plus, the buffer adjustment is incredibly smooth and steady, preventing the kind of end-of-stroke slamming that can eventually tear machines apart. If your B2B buyers are running high-heat processes, say in demanding stainless steel automation environments, you can even spec this specific unit with high-temperature resistance seals guaranteed to handle up to 150°C.

Core Product Specifications

To keep your procurement sheets perfectly accurate and help your buyers make informed engineering decisions, here are the exact technical specifications required for this unit:

Specification Element	Technical Detail
Bore Sizes (mm)	16, 20, 25, 32, 40
Motion Pattern	Double Action or Single Action
Port Size	M5×0.8 (ø16), G1/8″ (ø20-32), G1/4″ (ø40)
Operating Speed Range	30 ~ 800 mm/s
Operating Pressure Range	0.1 ~ 0.9 MPa
Standard Stroke (mm)	25 ~ 300 (Multiple increments)

Advantage Summary

The Tie-rod Cylinder with Adjustable Stroke SCJ delivers exact stroke tuning and bulletproof reliability via its carbon steel tie-rod construction. Featuring a space-saving footprint, smooth variable cushioning, and an advanced heterogeneous two-way seal for integrated oil reservation, it ensures highly durable, low-maintenance pneumatic performance even in extreme, high-temperature industrial applications.
